Using the Olarm MAX and its I/O ports as a communicator-only device

The Olarm MAX can function as a dedicated communicator for monitoring legacy alarm, fire, or panic systems that aren't directly supported. To set this up:

1. Leave the yellow and green communication wires disconnected
2. Power up your Olarm MAX device
3. Add the device to your Olarm APP

Note: This configuration will prevent the Olarm MAX from searching for compatible security systems, allowing it to function purely as a communicator. Should the device perform a Firmware Update, allow it to complete the update before proceeding.

Disabling panel mode in the Olarm APP

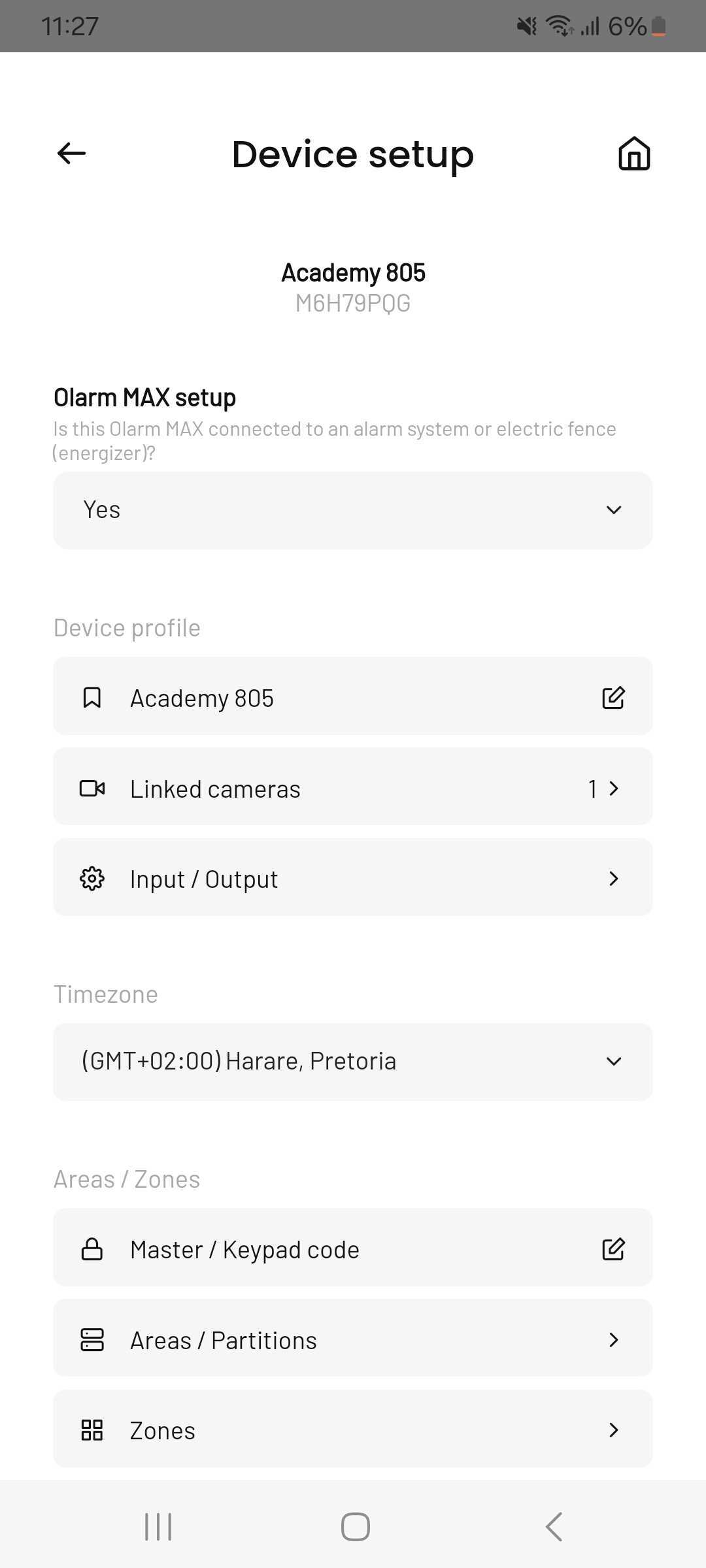

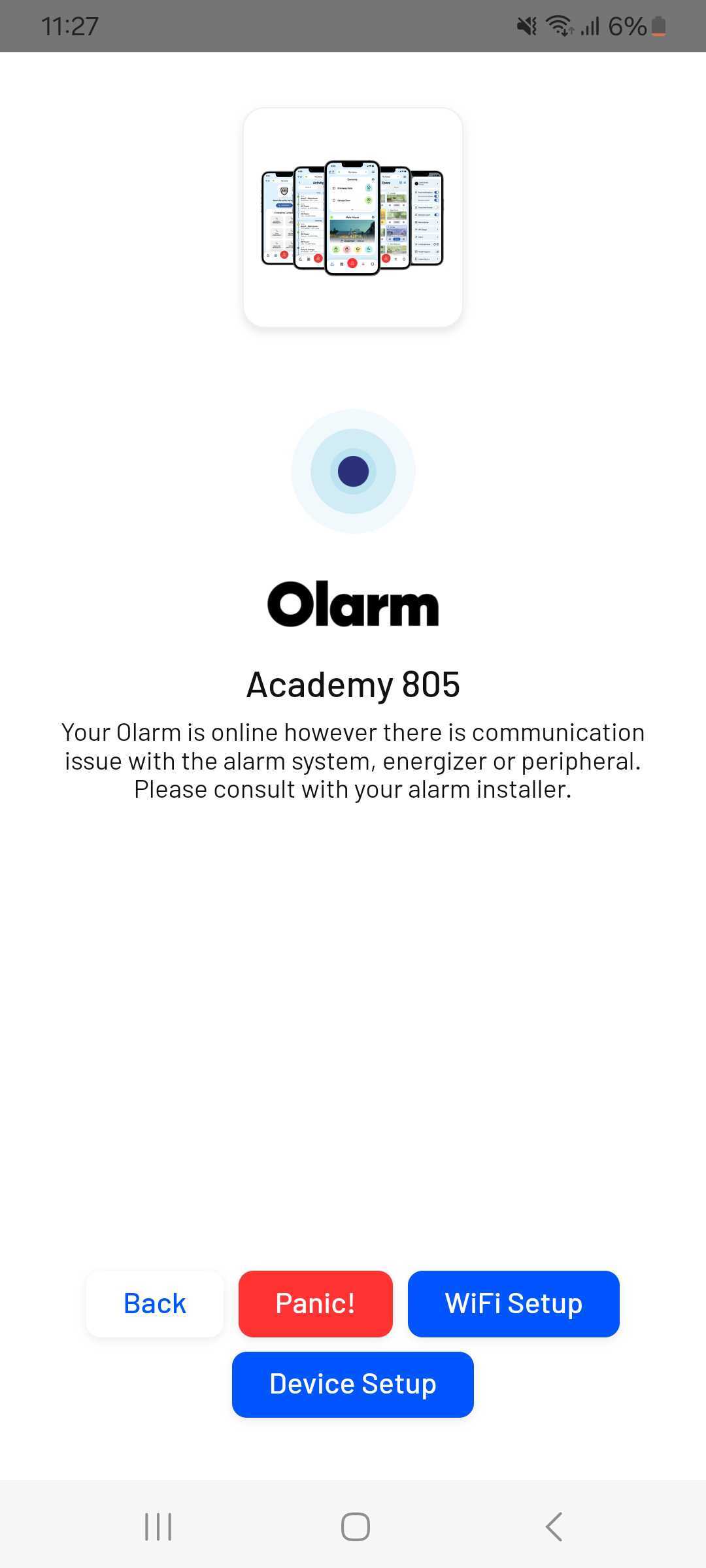

Step 1: Navigate to the Olarm MAX you wish to monitor & go into the Device Setup

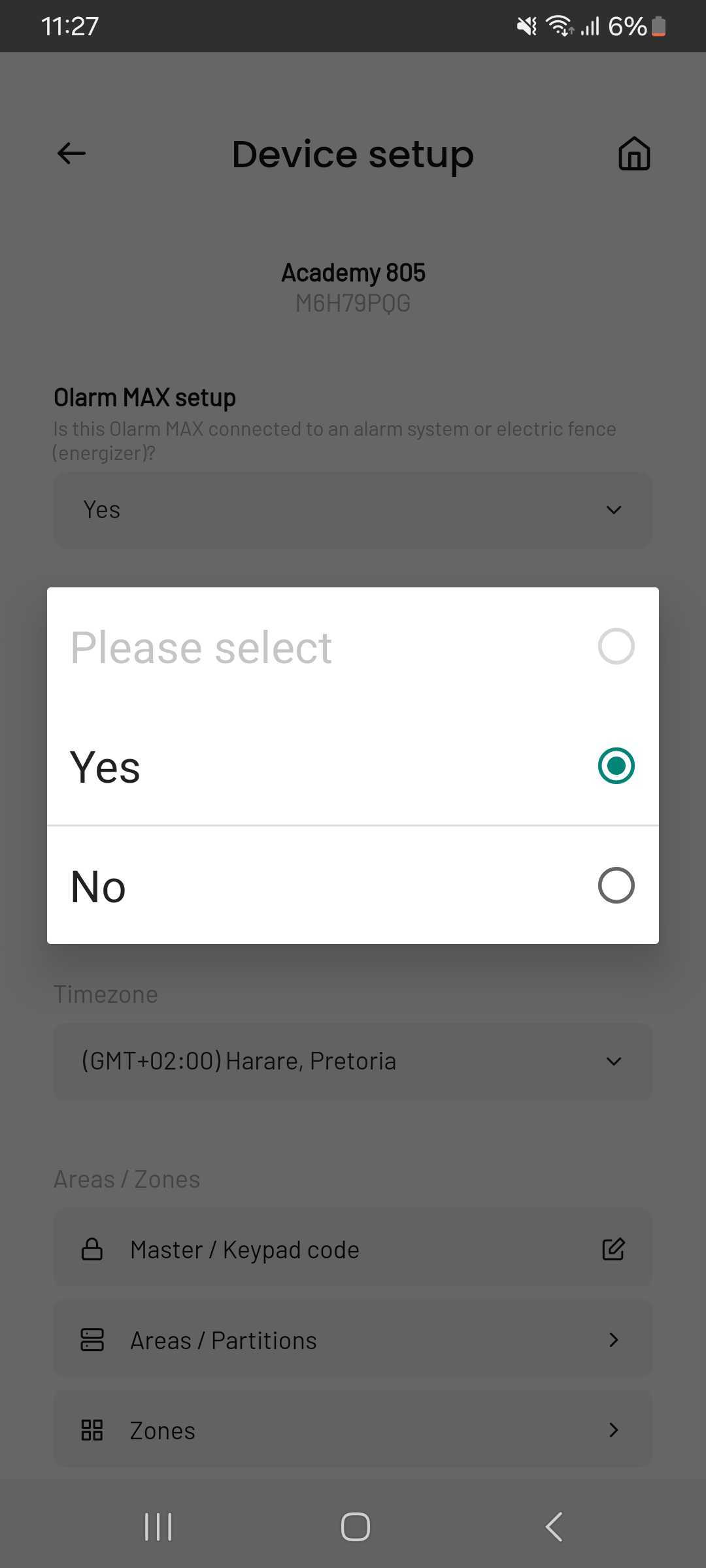

Step 2: Set the Olarm MAX setup answer to No

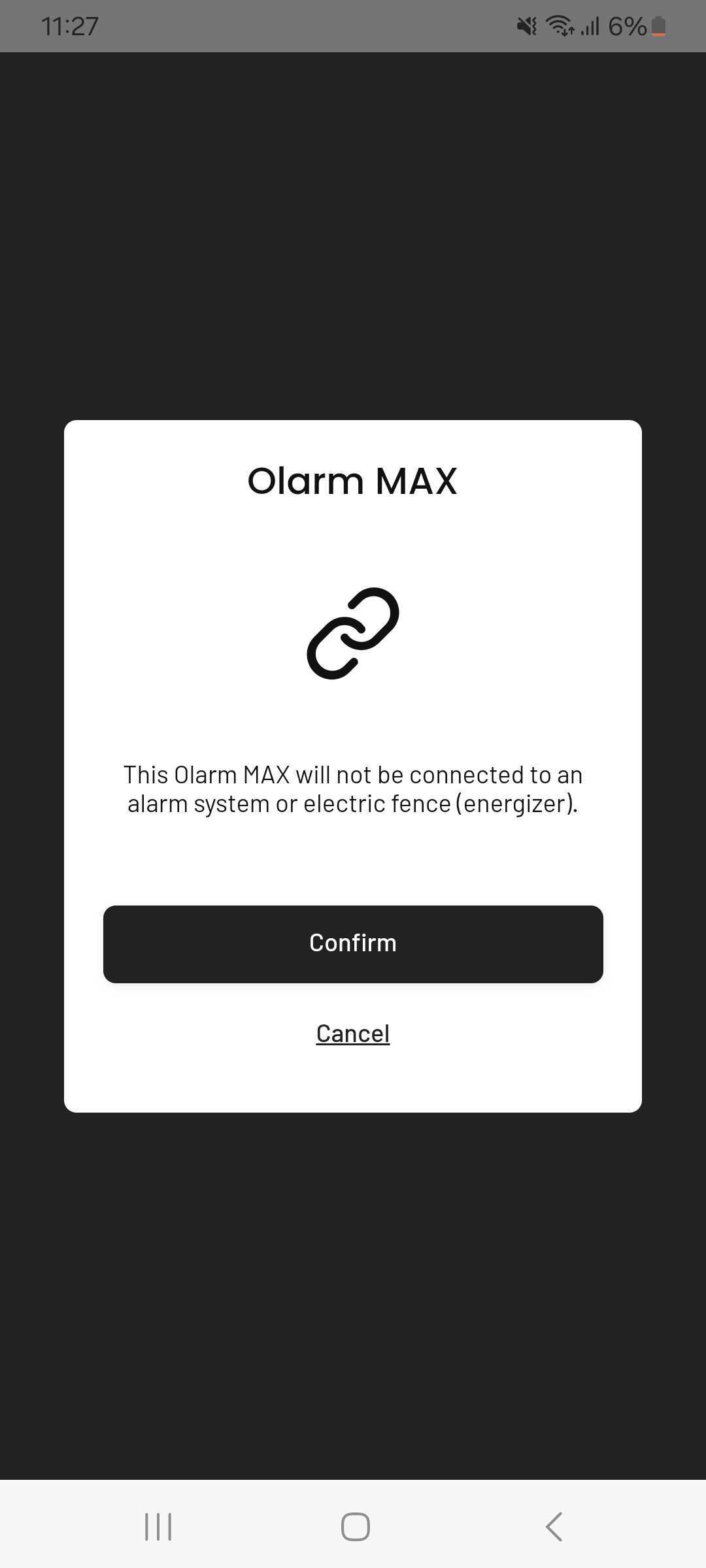

Step 3: Confirm the Olarm MAX is not connected to a supported Alarm System or Energizer



---

Wiring diagram for a standalone Olarm MAX

The Olarm MAX features two I/O Ports that can be used to monitor older or incompatible alarm, fire, or panic systems. These I/O Ports are configured in the Olarm APP to detect voltage changes in the monitored system, with the appropriate Contact ID assigned in Command Centre based on the function and monitoring purpose.

We recommend using or programming a terminal/PGM set to a positive trip for events (e.g., an alarm system PGM switching from 0V to 12V when a burglary is detected).

Click here to learn how to setup IO port monitoring in Command Center
