Configure the I/O Ports on Command Centre to send signals

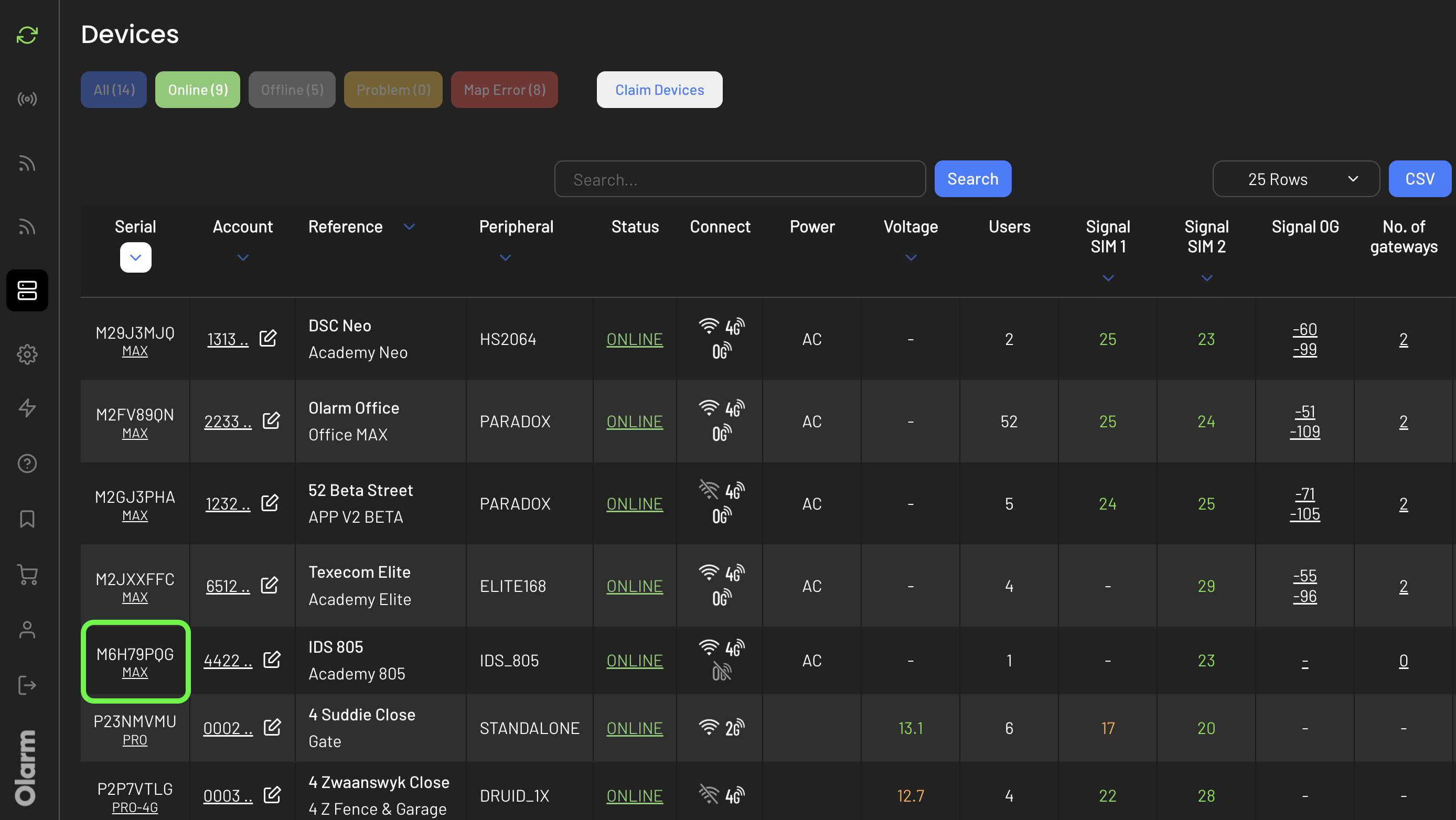

Step 1: Navigate to the Olarm MAX device you wish to monitor


Open Screenshot 2024-09-10 at 13.53.35.png

Step 2: Go into the peripherals tab found in the side bar & select the device

Open Screenshot 2024-09-10 at 13.53.57.png

Step 3: Click on the IO Port and toggle the
Open Screenshot 2024-09-10 at 14.01.31.png

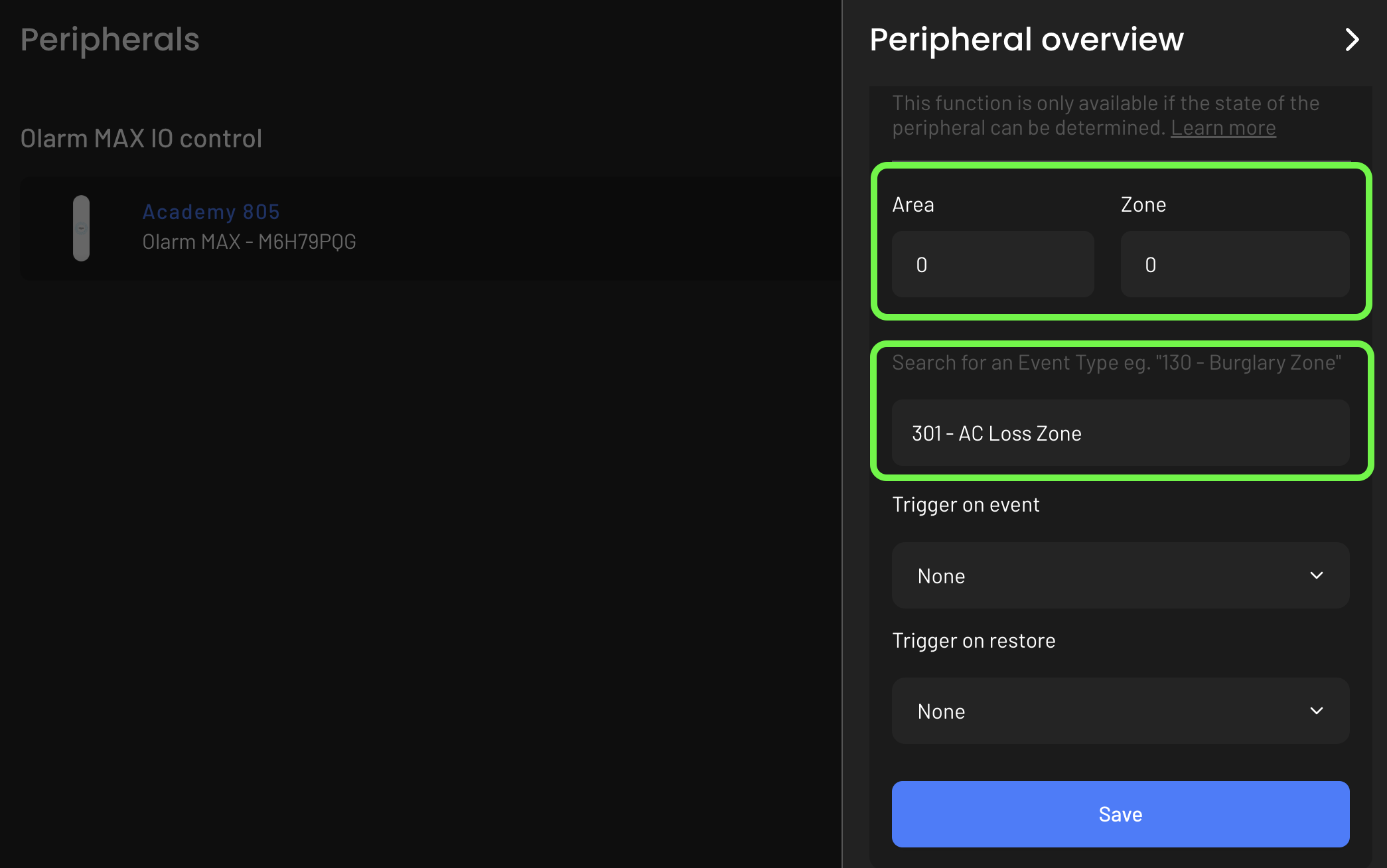

Step 4: Assign an Area & Zone number to the signal & search for the relevant Contact ID you wish to receive for monitoring
Open Screenshot 2024-09-10 at 14.03.05.png

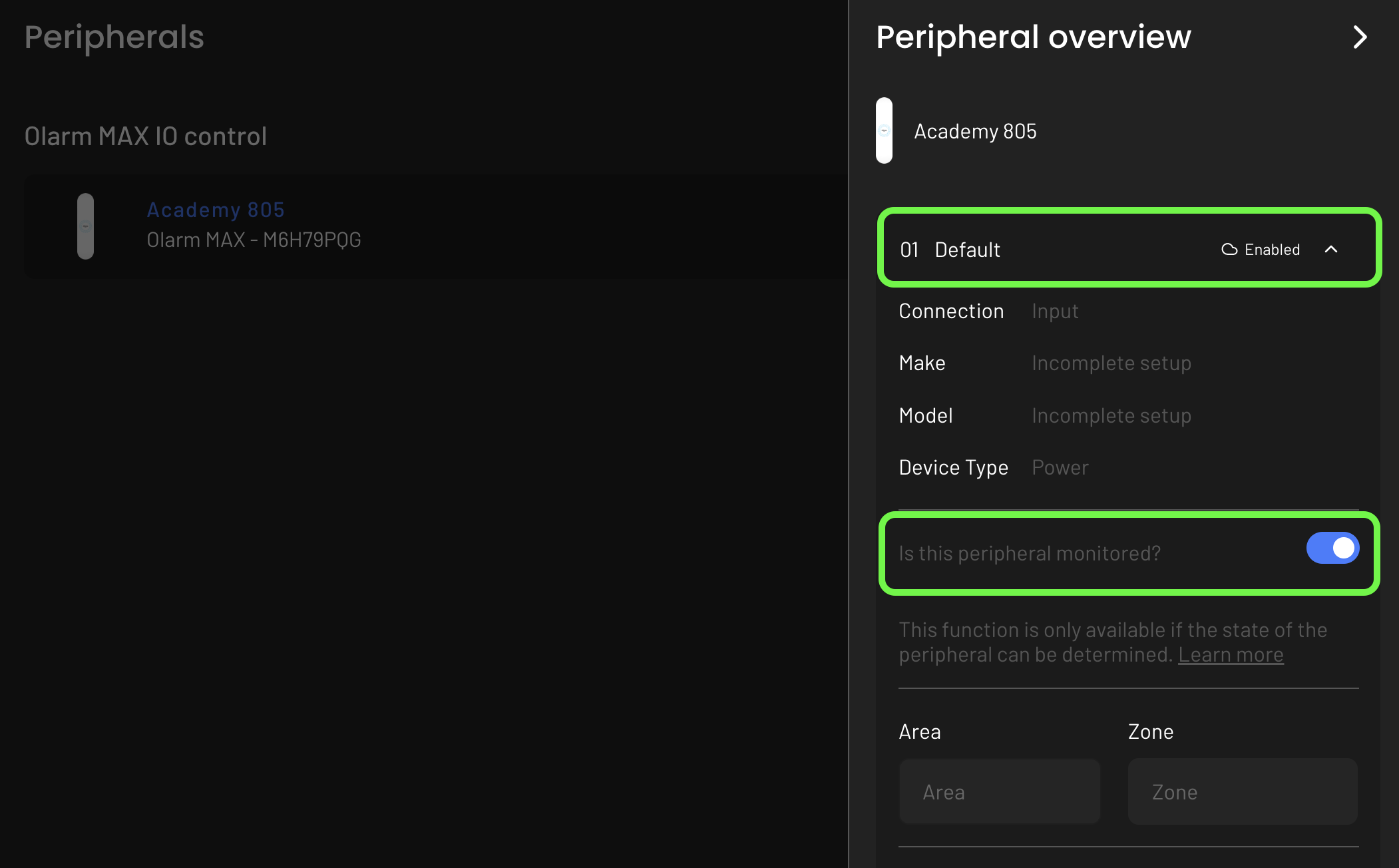

Step 3: Click on the I/O Port and enable the tab that says "Is this peripheral monitored?"



Step 4: Assign an Area & Zone number to the signal & search for the relevant Contact ID code you wish to receive for monitoring

Notes
You can either search for the event description or the Contact ID code

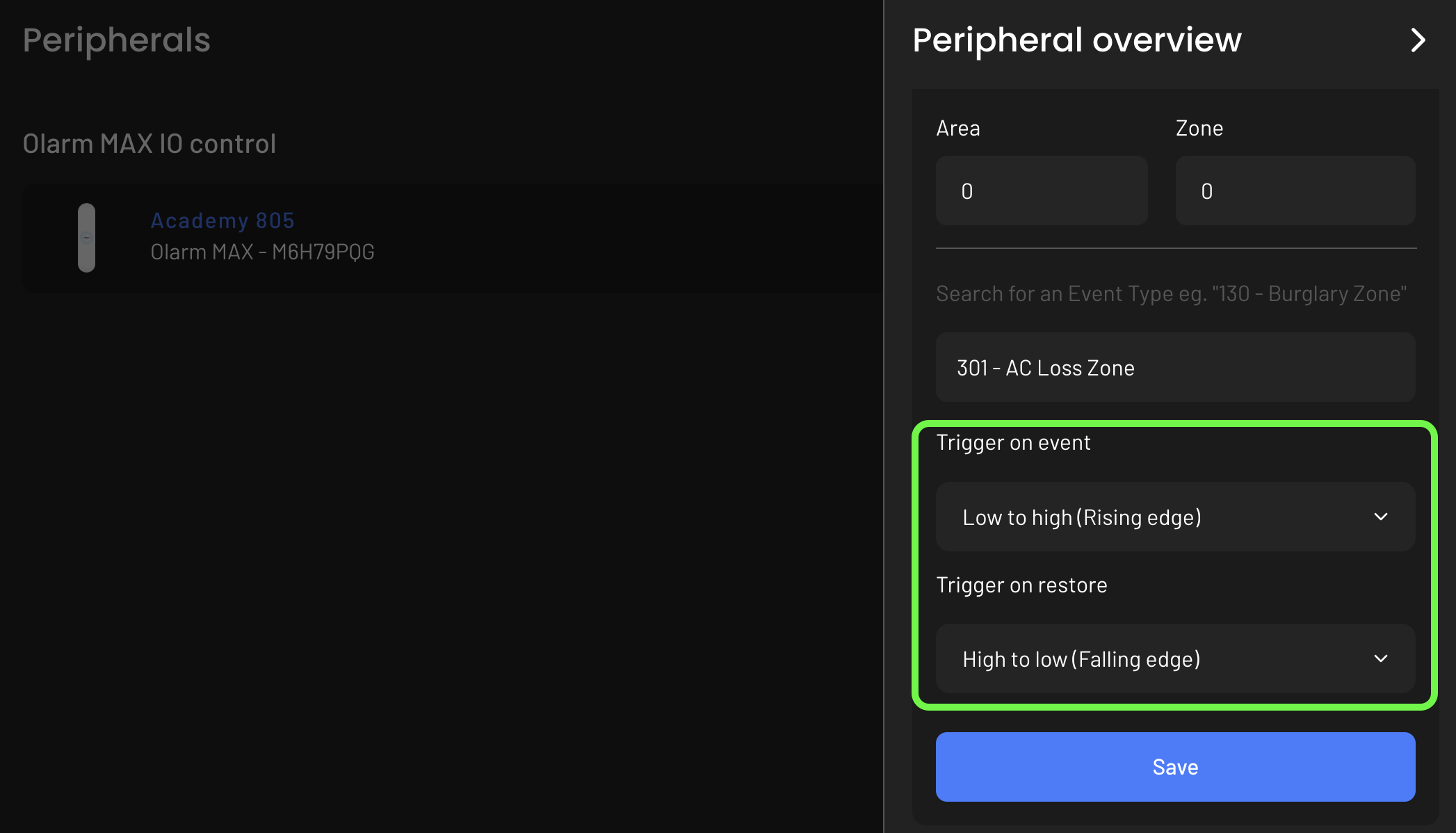

Step 5: Set the event to trigger and/or restore based on the terminal/PGM being monitored:

Notes
We recommend triggering the event on a low to high trigger (positive trigger)
Trigger on event, “High to low(falling edge)” or “Low to high (rising edge)”
Trigger on restore, “Low to high (rising edge)” or “High to low(falling edge)”


Open Screenshot 2024-09-10 at 14.03.41.png

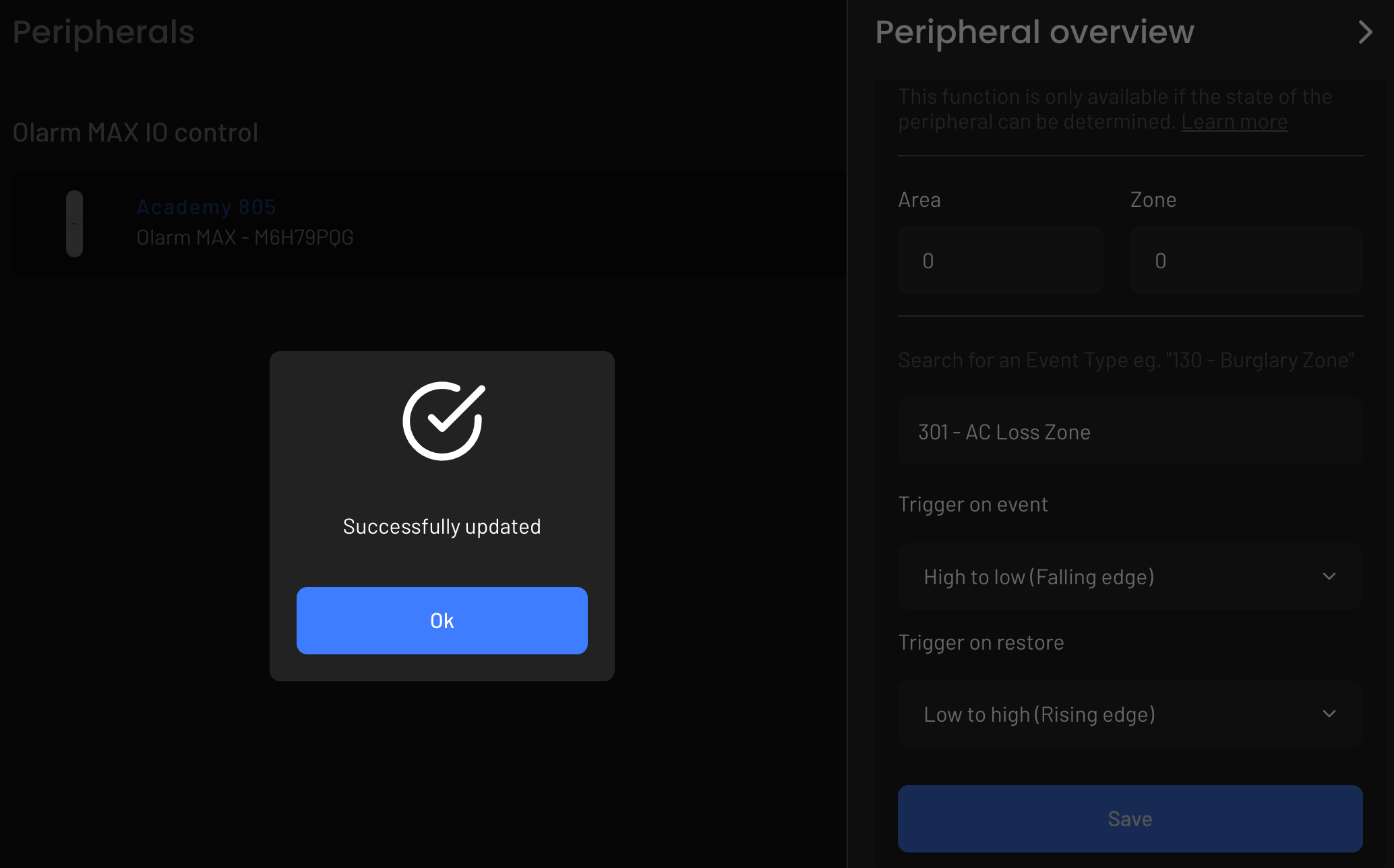

Step 6: Save the configuration to finalise the monitoring signals from the I/O ports
