Adding a Hikvision NVR camera in the Olarm APP

This guide is unique to Hikvision cameras/NVRs and their setup. Ensure that you have adjusted your Hikvision camera/NVR to the required settings.

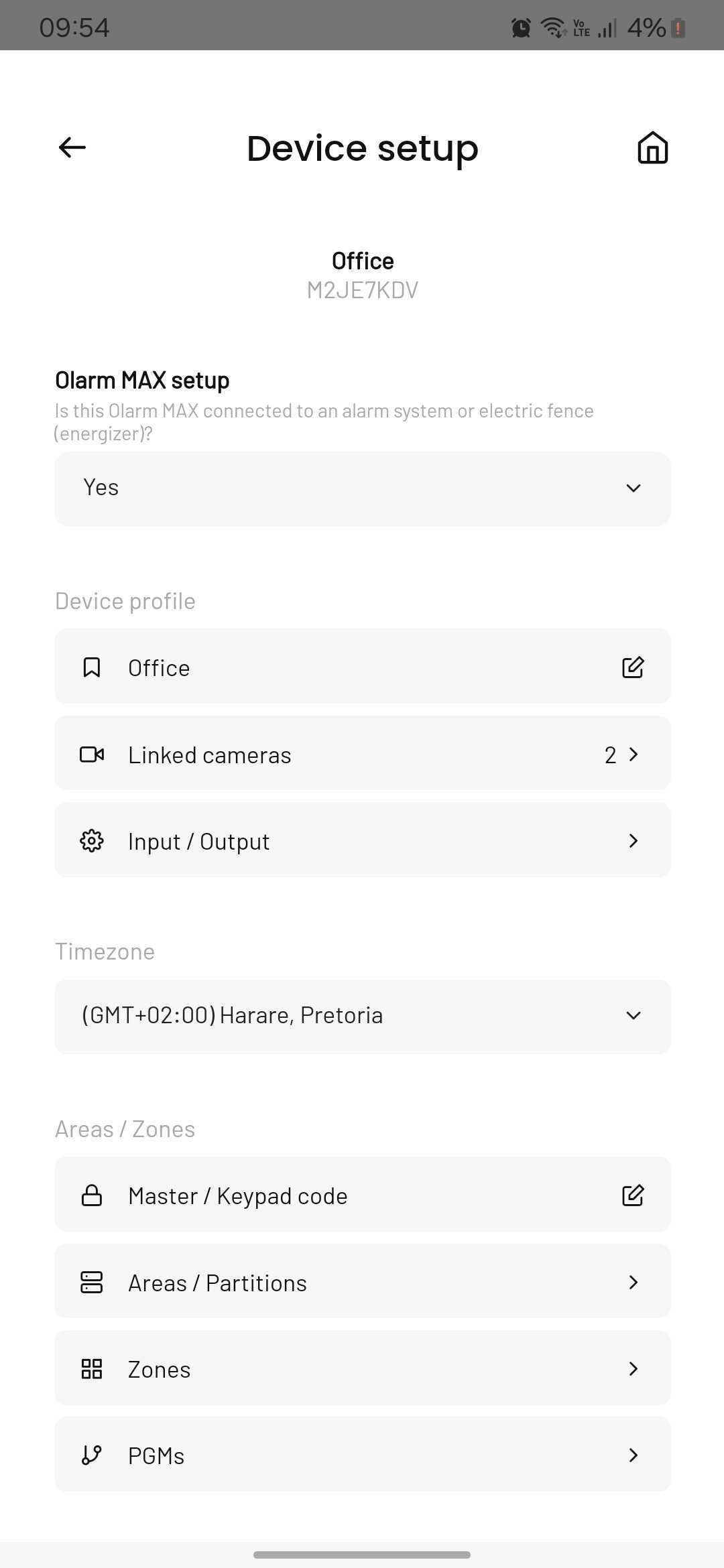

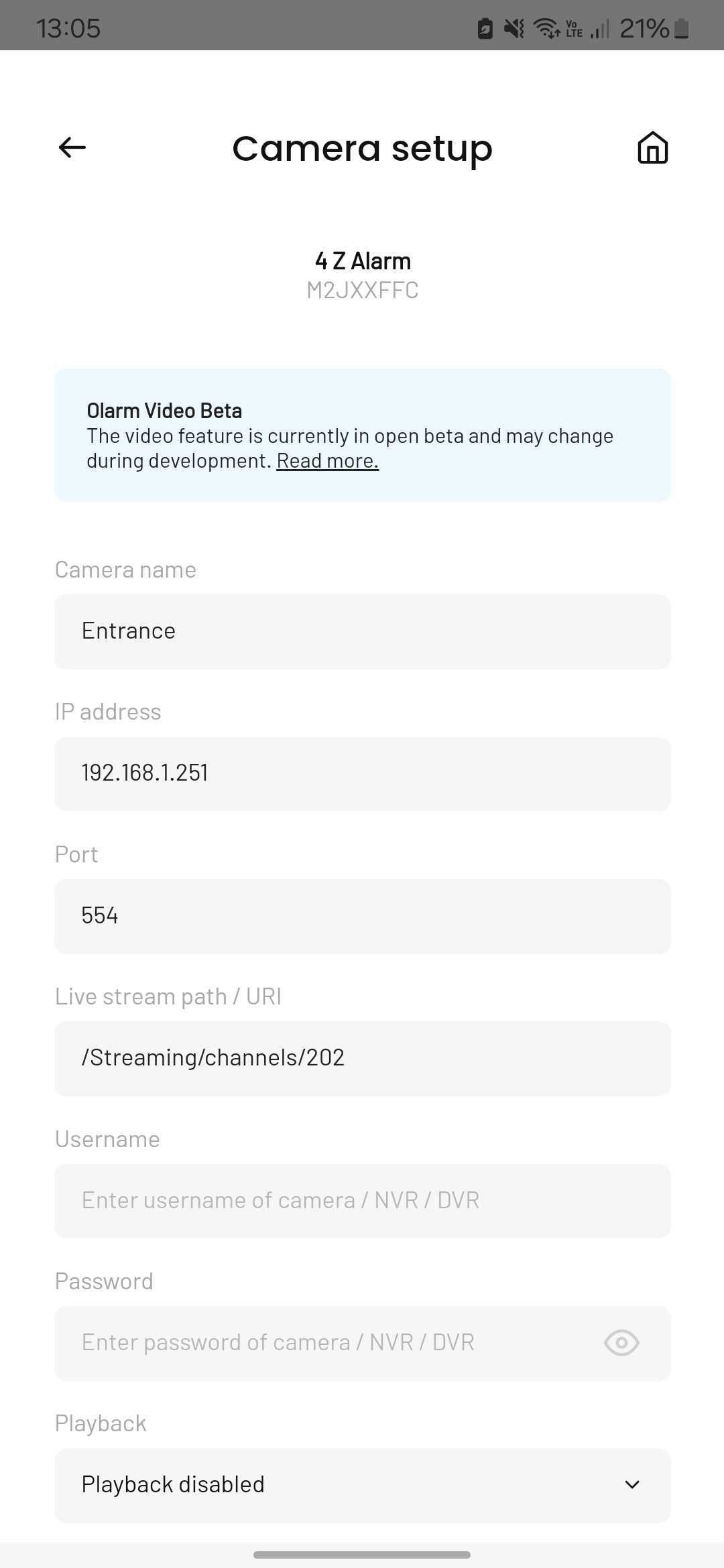

Step 1: Navigate to you Olarm MAX’s Device setup and select Linked cameras

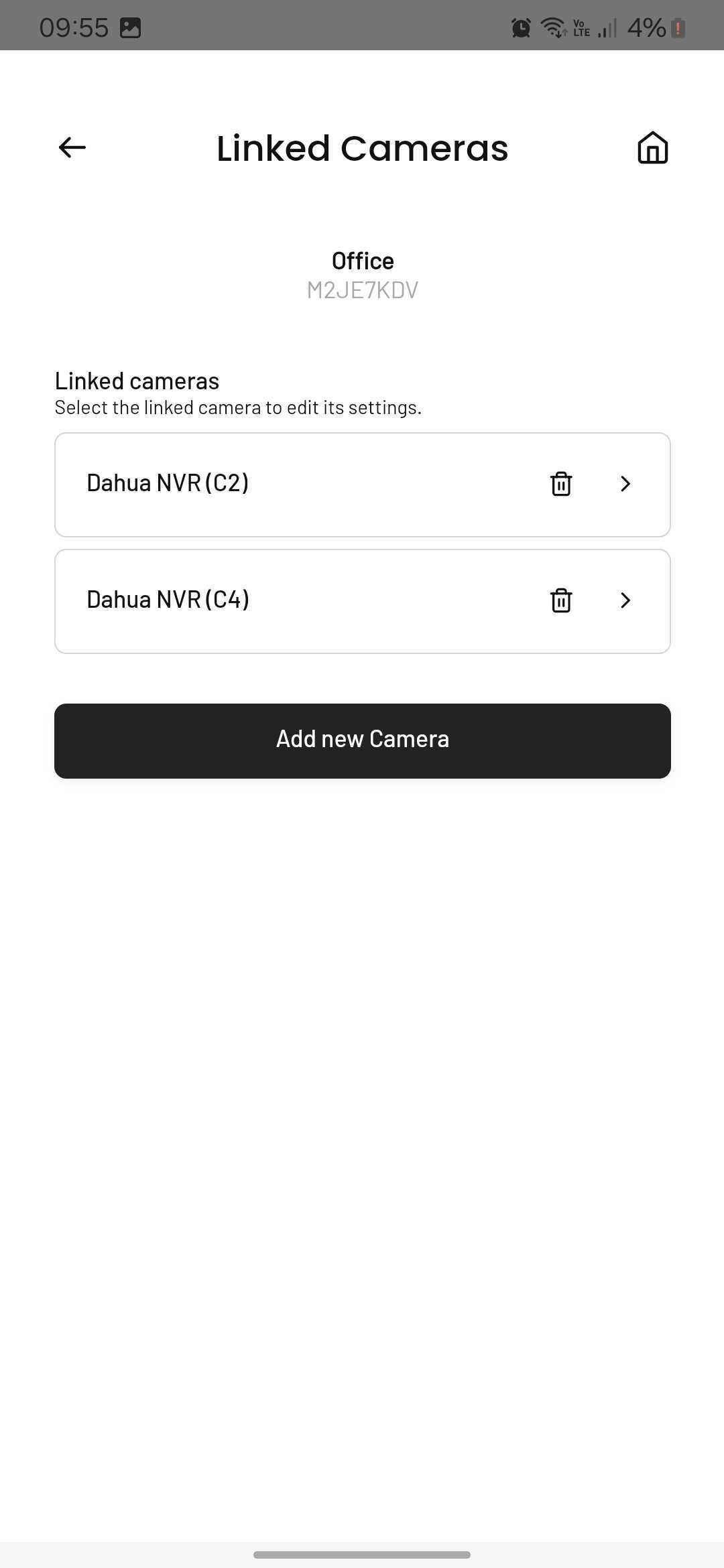

Step 2: Select Add new Camera

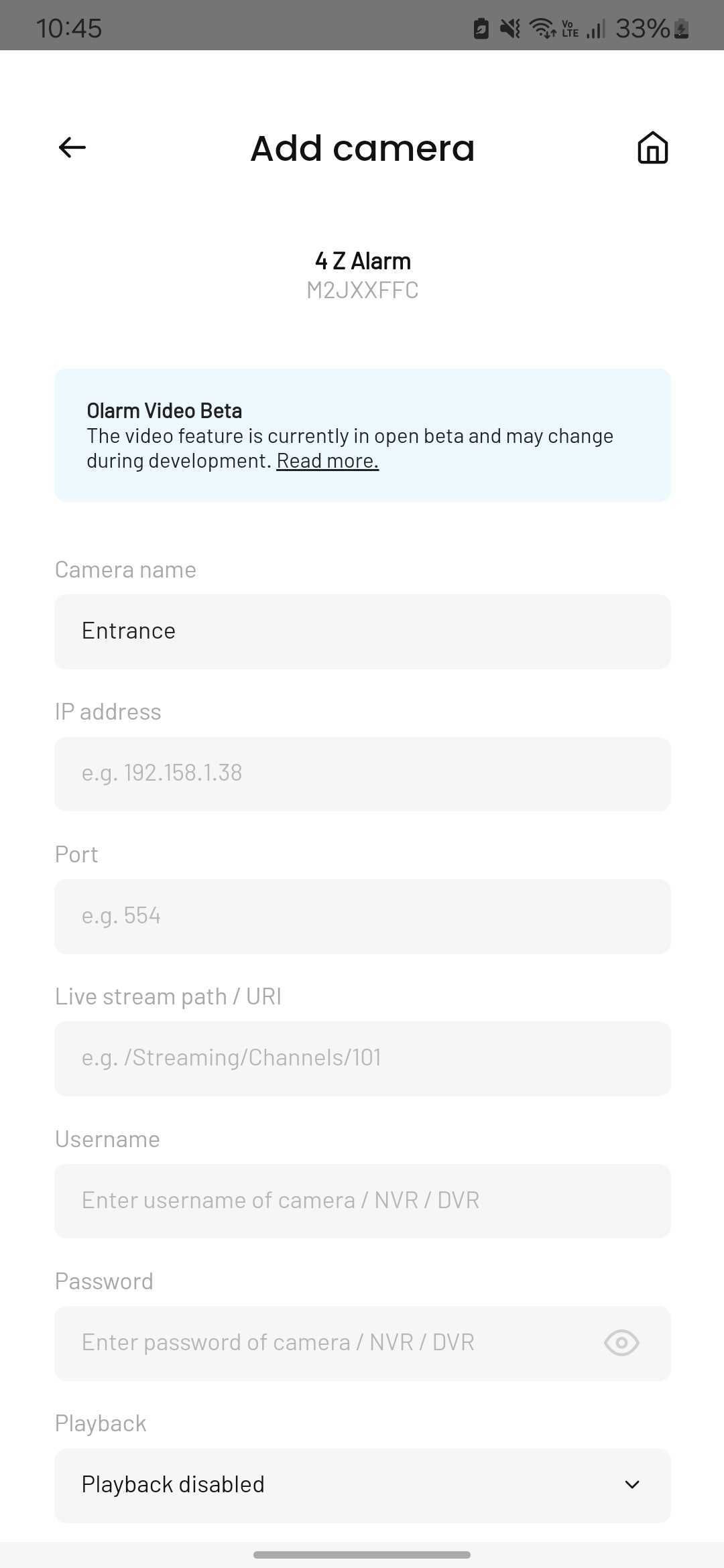

Step 3: Give your Camera a Name

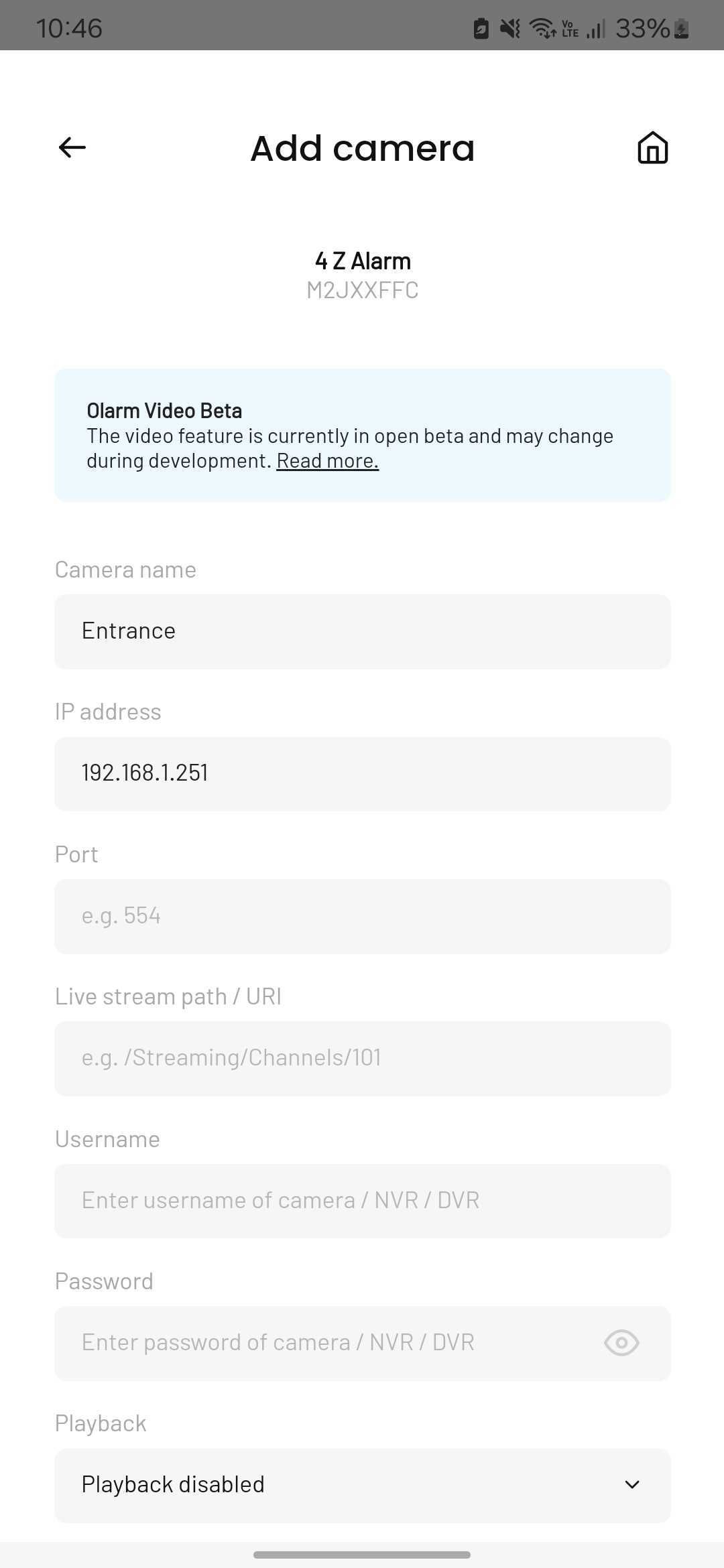

Step 4: Enter your Hikvision NVR's IP Address

You can obtain your NVR's IP Address in your Hikvision Video Management System

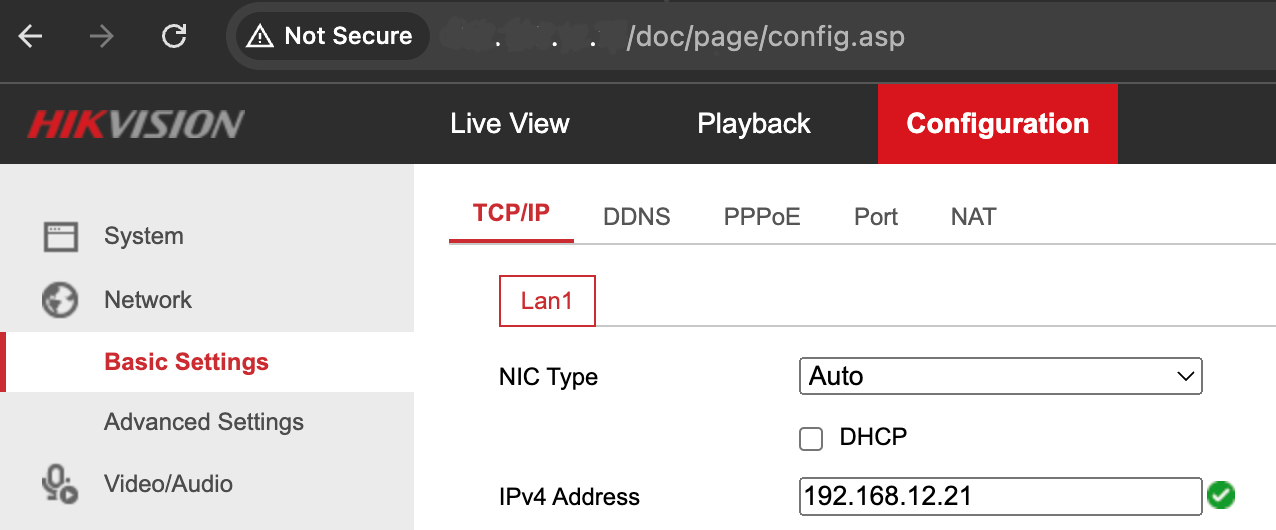

• Navigate to the “Configuration” tab

• Select “Network” and click on “Basic Settings”

• The DVR’s/NVR’s IP Address will be displayed under “IPv4 Address”

Should you have IP Camera’s, you can use their direct IP Addresses (Playback function will not work should you make use of your IP Camera's direct IP Address)

• Navigate to “Camera Settings”

• Choose “Edit Camera”

• The IP Address of the IP Camera will be displayed in the pop-up menu


Step 5: Enter the Port number

The Port is the number assigned to the RTSP Port on your NVR. The default RTSP Port number is 554. This may have been changed upon setup.

To check the RTSP Port number:

• Navigate to “Configuration”

• Select “Network” and choose “Basic Settings”

• Select “Port” and the RTSP Port number will be displayed here

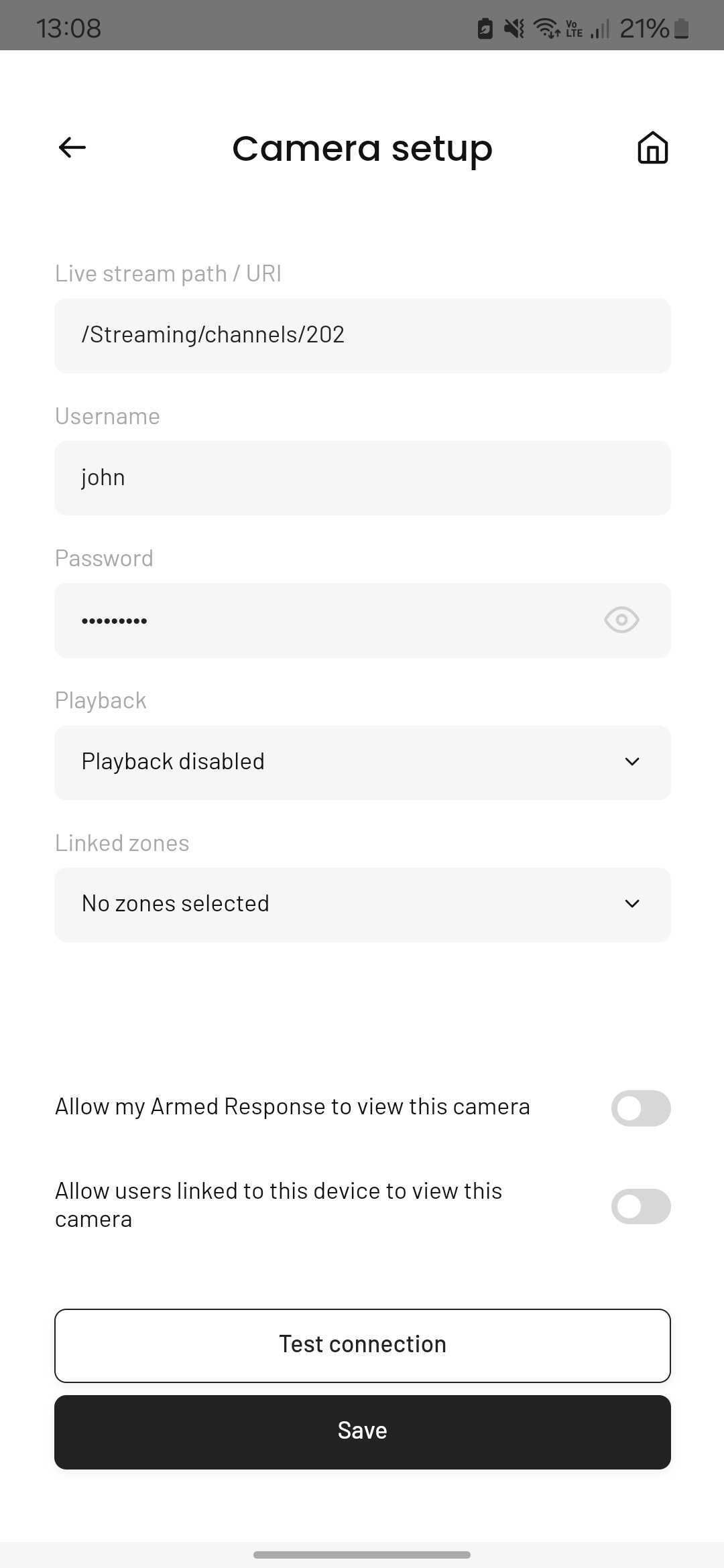

Step 6: Enter the Live stream path/URL

The standard Hikvision camera Live stream path/URL is as follows, ensure you edit it to suit your camera channel number:

/Streaming/channels/202

• Ensure you enter your relevant camera’s channel number (1-48)

• Ensure you enter 02 for sub-stream and do not use the mainstream which is 01

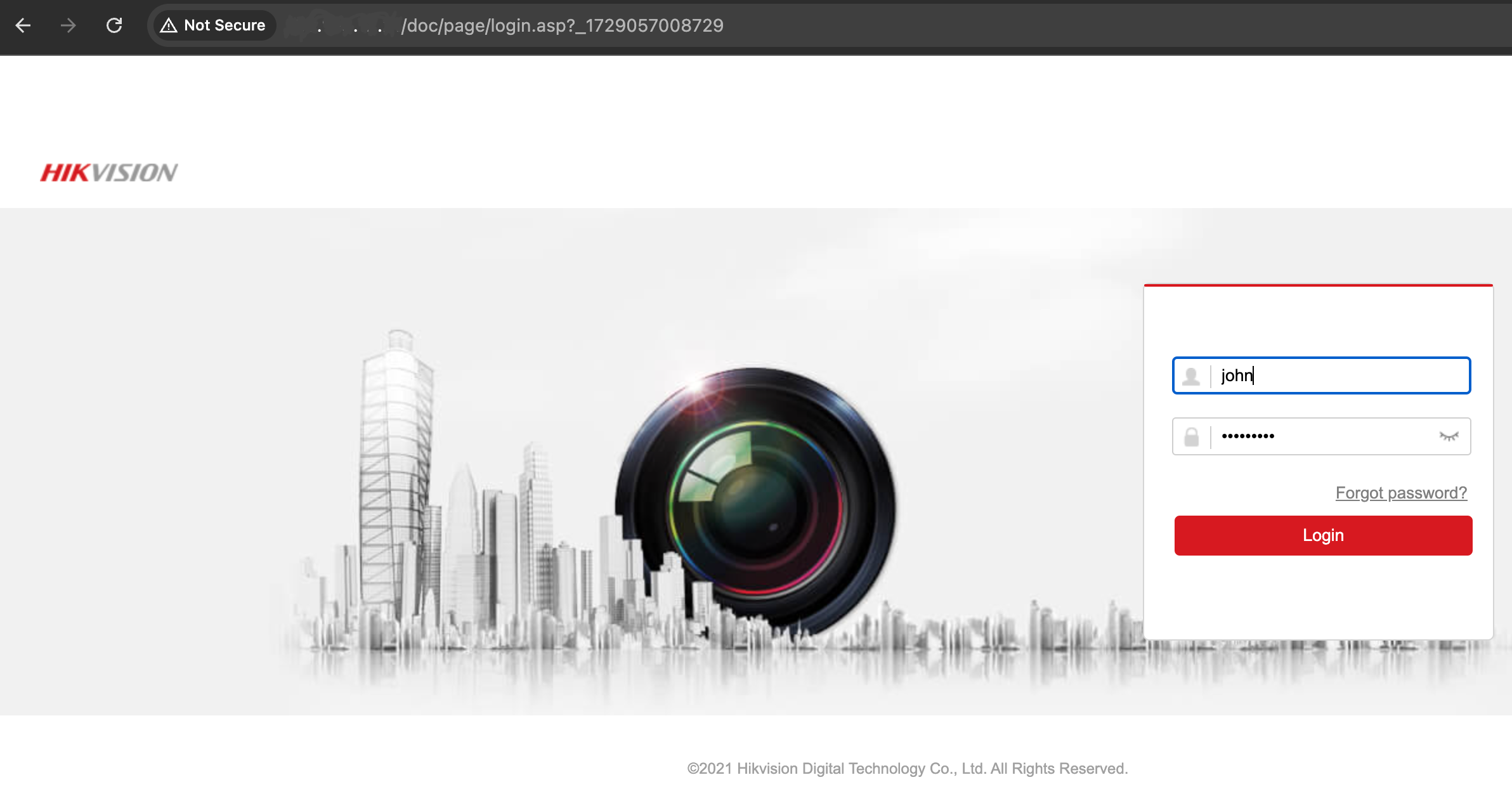

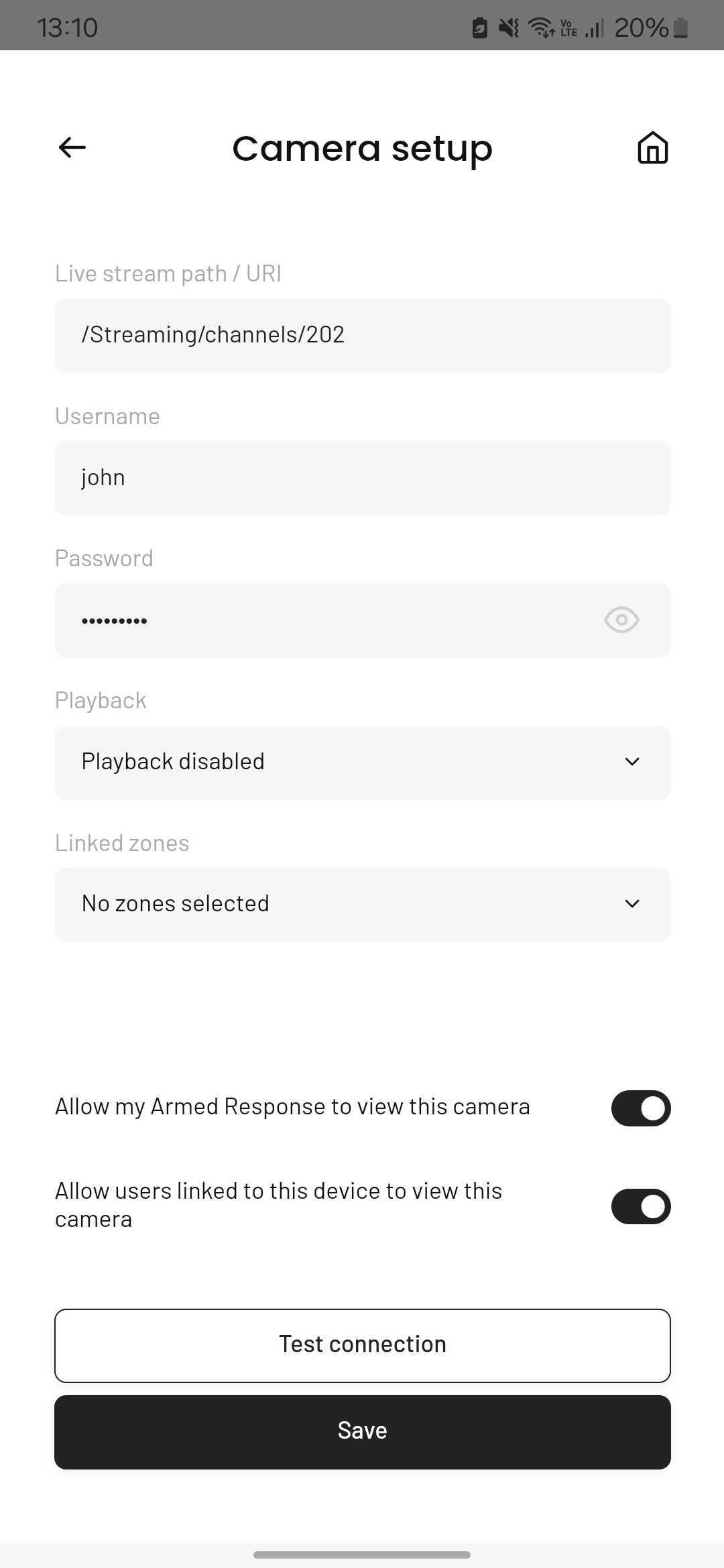

Step 7: Enter the User Name and Password used to login to the Video Management System or IP Camera

Ensure that you make use of the login credentials used to access your HikVision platform or HikVision camera.

Step 8: Choose which zones the camera will be linked to

This feature is only available should you have added the camera to an Olarm MAX that is connected to an Alarm System with zones.

Step 9: Toggle the buttons to allow Armed Response access to the camera feed & allow device users access to the camera feed

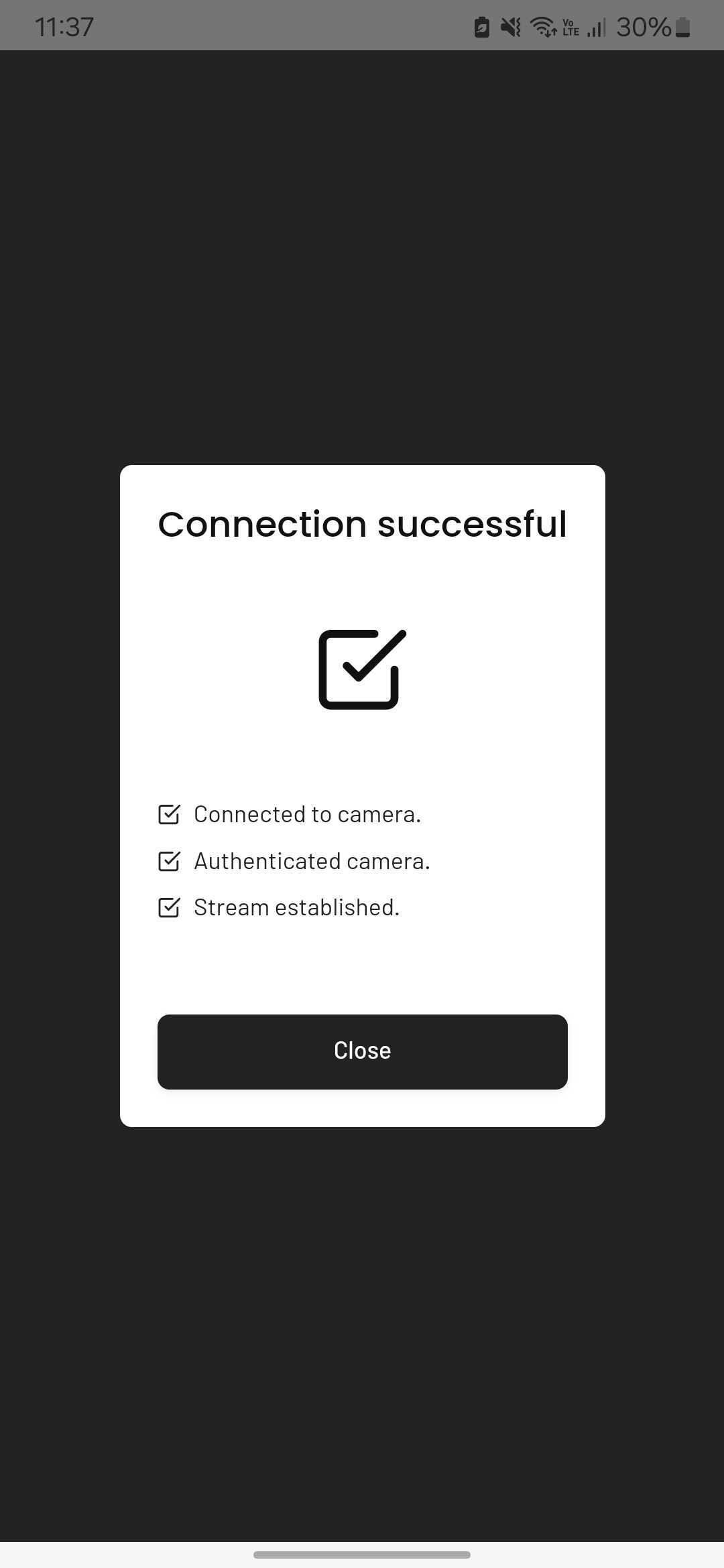

Step 10: To see if the information has been entered correctly tap 'Test Connection'

Should the “Test connection fail”, recheck the details you have entered in the Olarm APP. Alternatively, you will need to visit the troubleshooting guide.
