How to update an Olarm MAX's firmware without connecting to a panel

How to update an Olarm MAX's firmware without connecting to a panel

You can update your Olarm MAX firmware in two ways:

  1. Power up the device without connecting it to an alarm system or energizer
  2. If already connected to a system, simply disconnect the communication wires

Once powered, the device will connect to the Olarm Cloud and receive the latest firmware update.

Step 1: Cut and strip the relevant sides of the communications cable

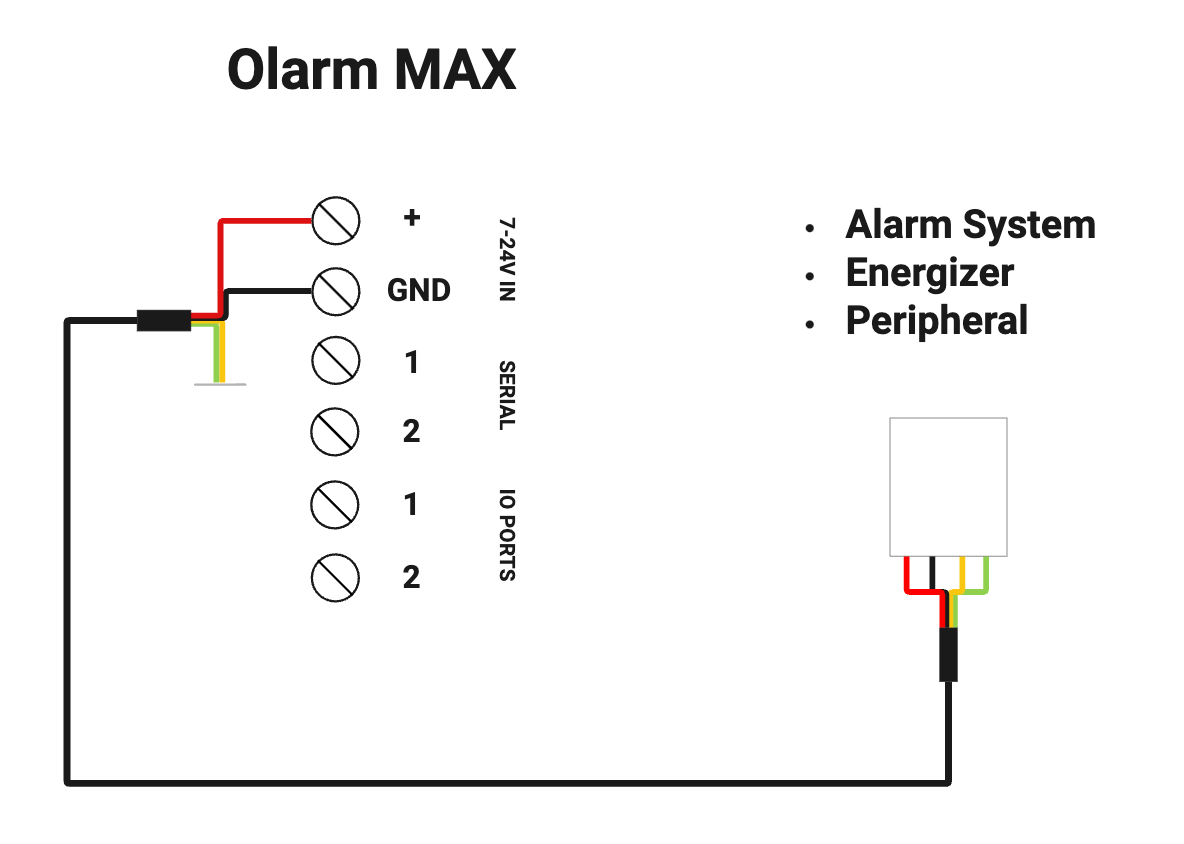

Step 2: Only wire the red and black wires to the positive and negative terminals on the Olarm MAX

Info
Leave the yellow and green communication wires disconnected to prevent system detection.

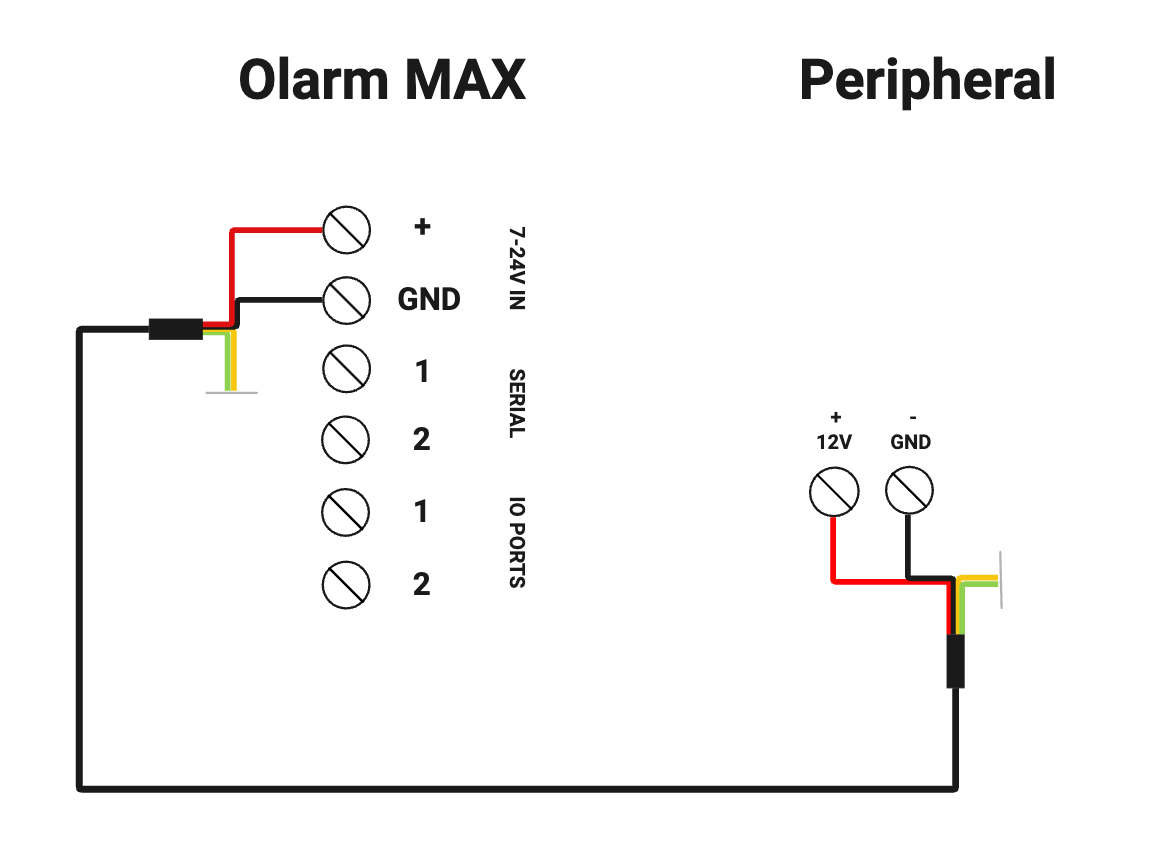

Step 3: Wire the other side of the communications cable to the power terminals of the peripheral

Info
Olarm MAX Power Requirements & Startup Sequence

The Olarm MAX operates on 12V-24V power, supplied by an alarm system, energizer, or compatible power source.

Startup LED Sequence:

  1. White (solid) - Device powering up
  2. Green (flashing) - Searching for peripheral
  3. Red (solid) - No peripheral detected
See the wiring diagrams below:

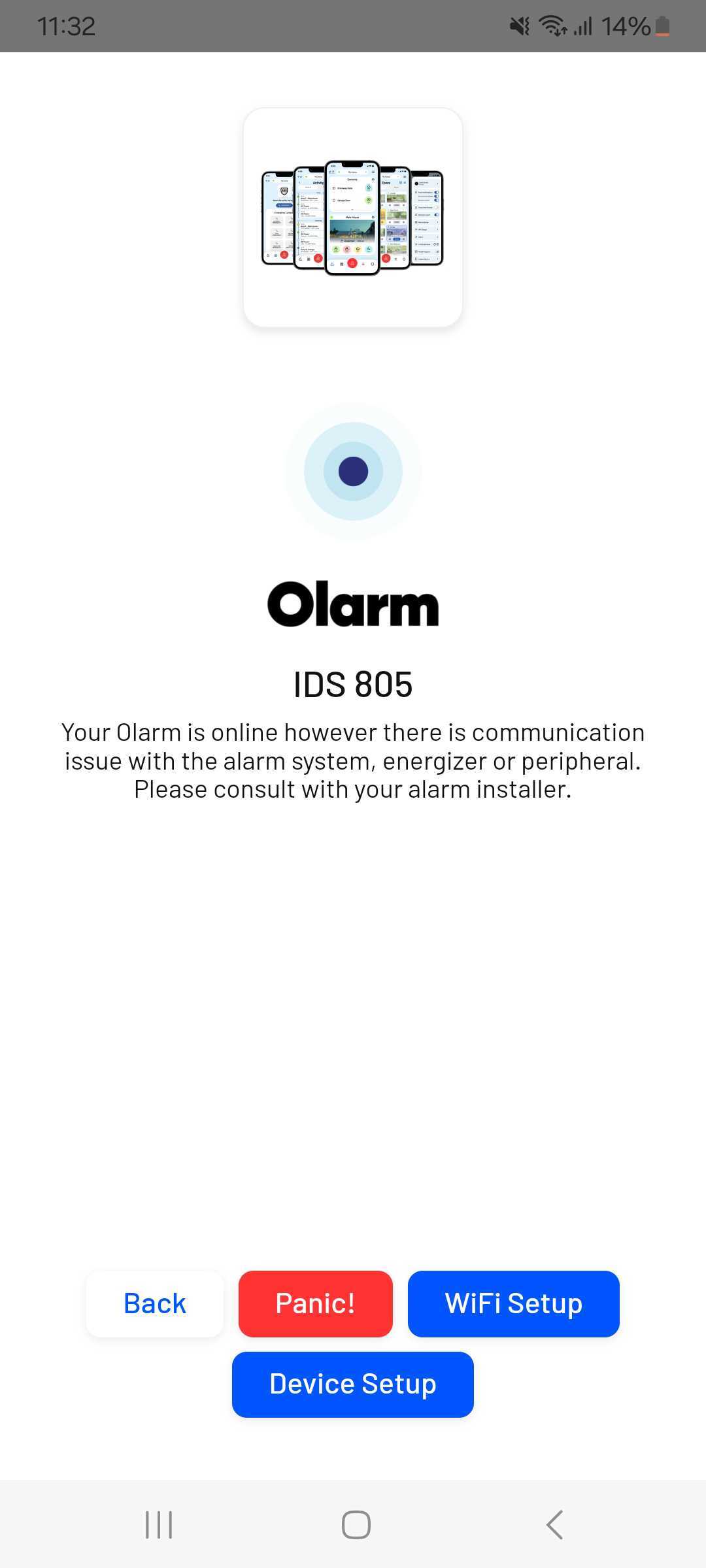

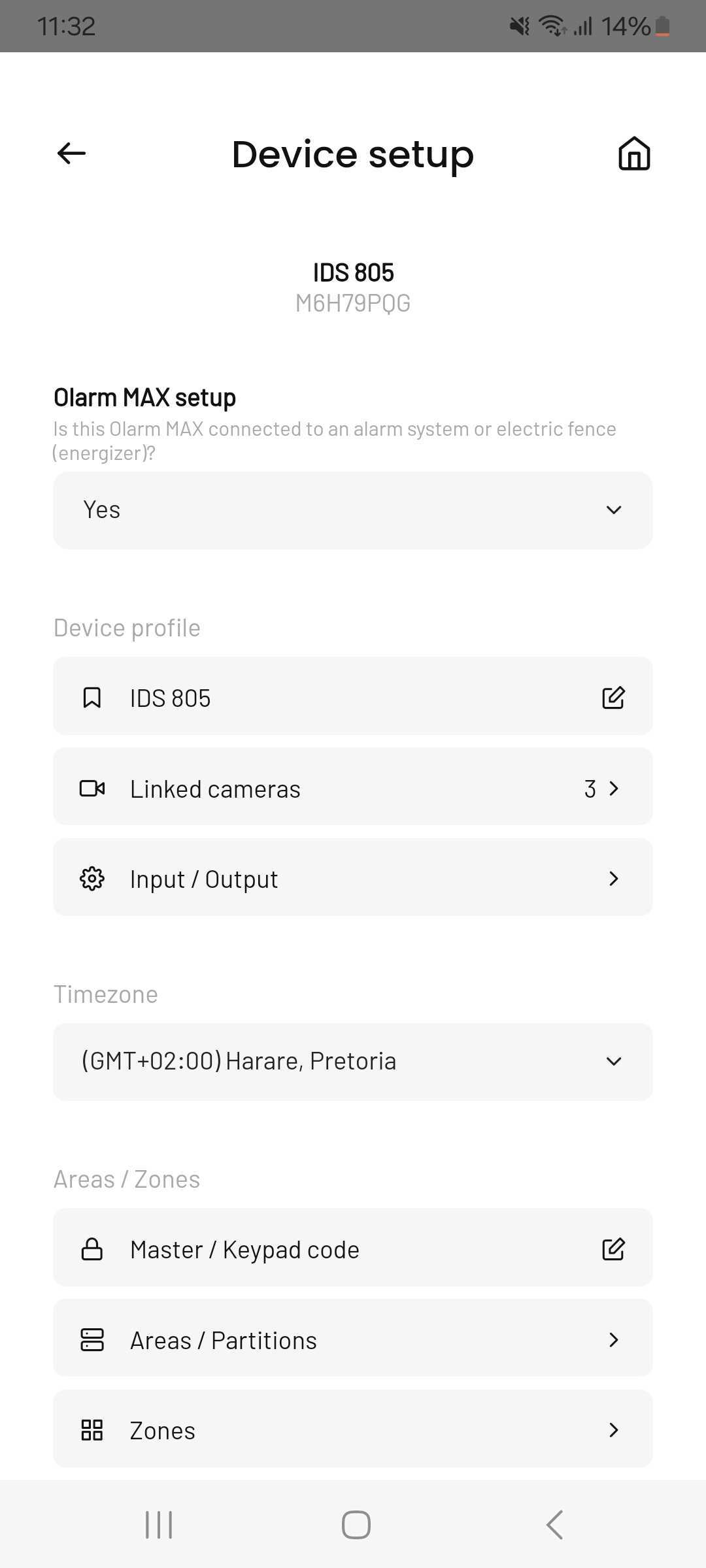

Step 4: Add the Olarm MAX to the Olarm APP and navigate to device setup

Info
The Olarm MAX will show a problem state (solid red LED), but this won't affect your ability to continue with device setup.

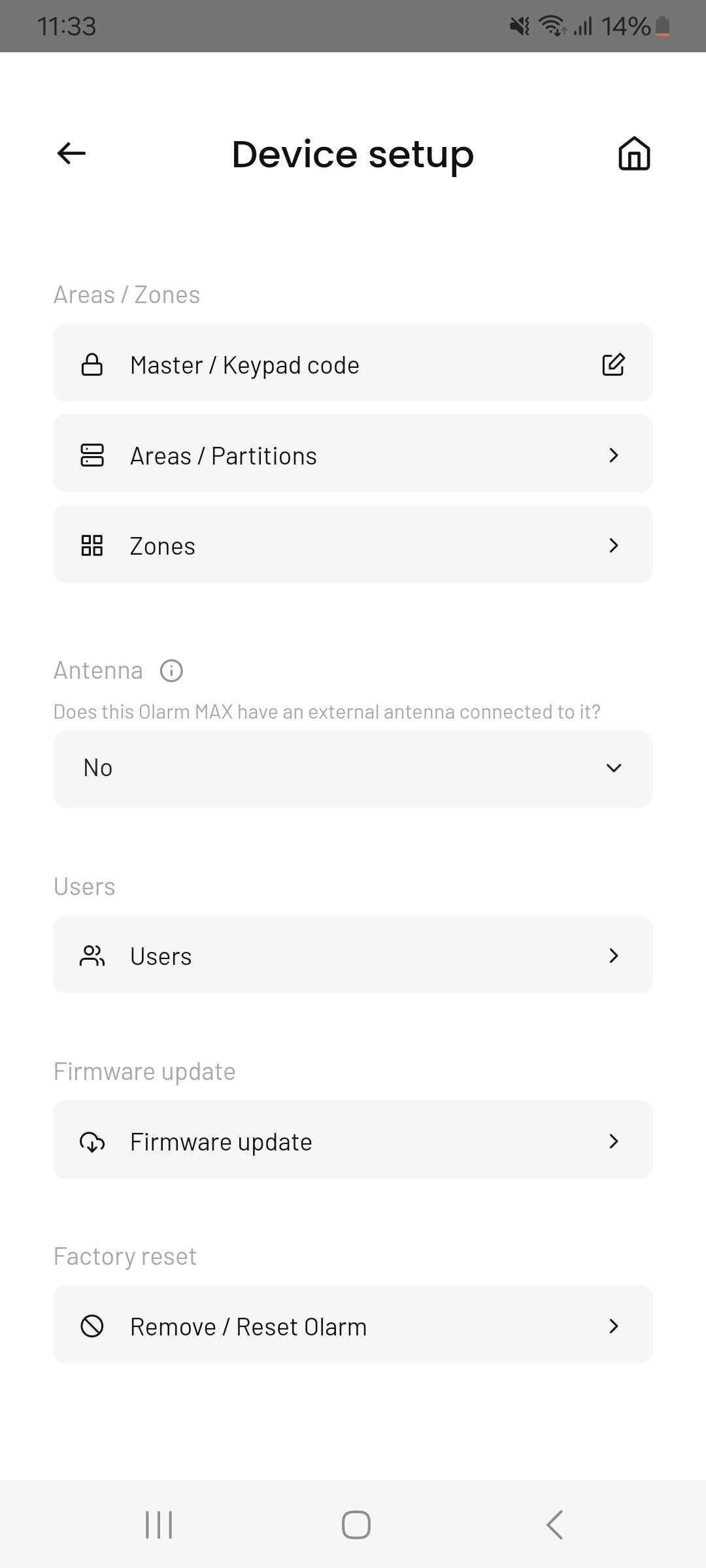

Step 5: Navigate to the the Update Firmware tab in the Olarm APP

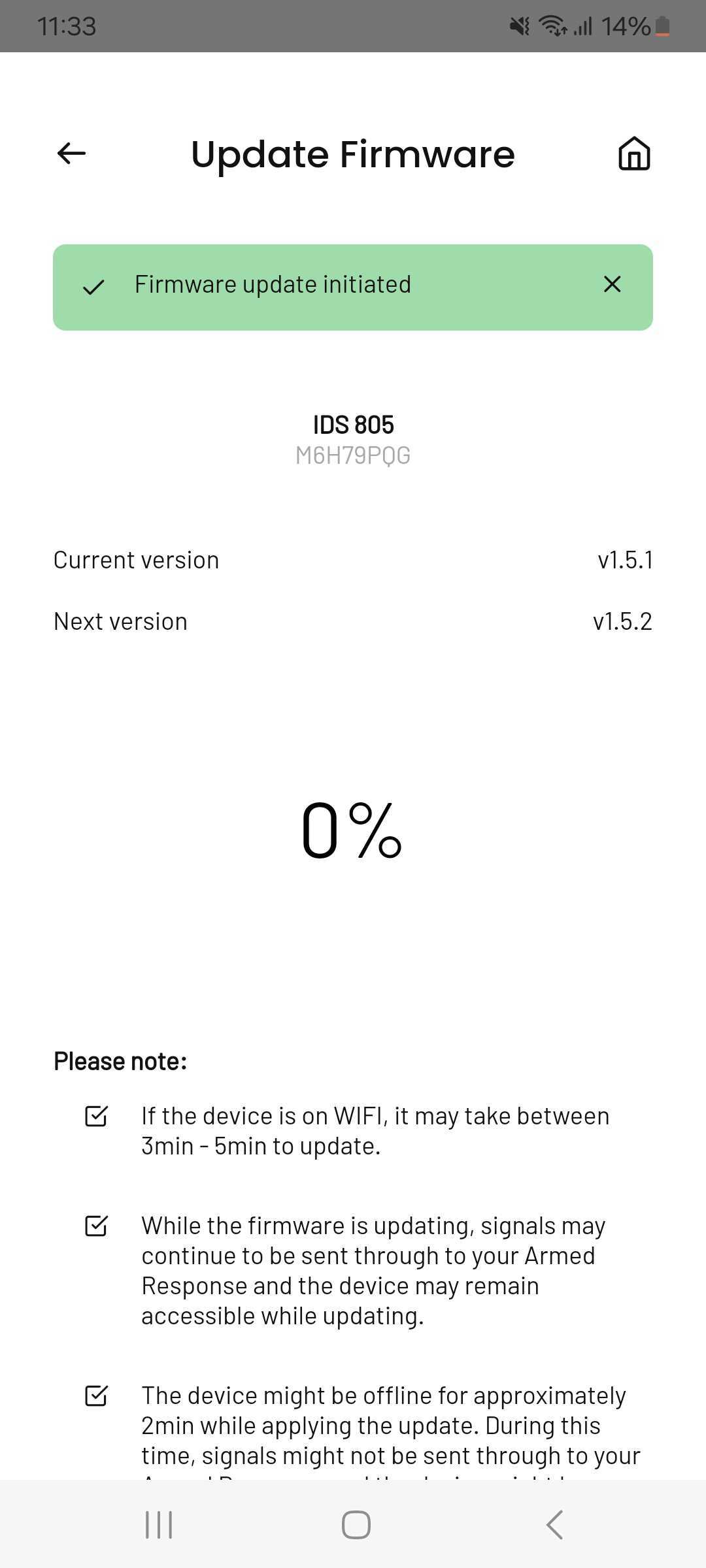

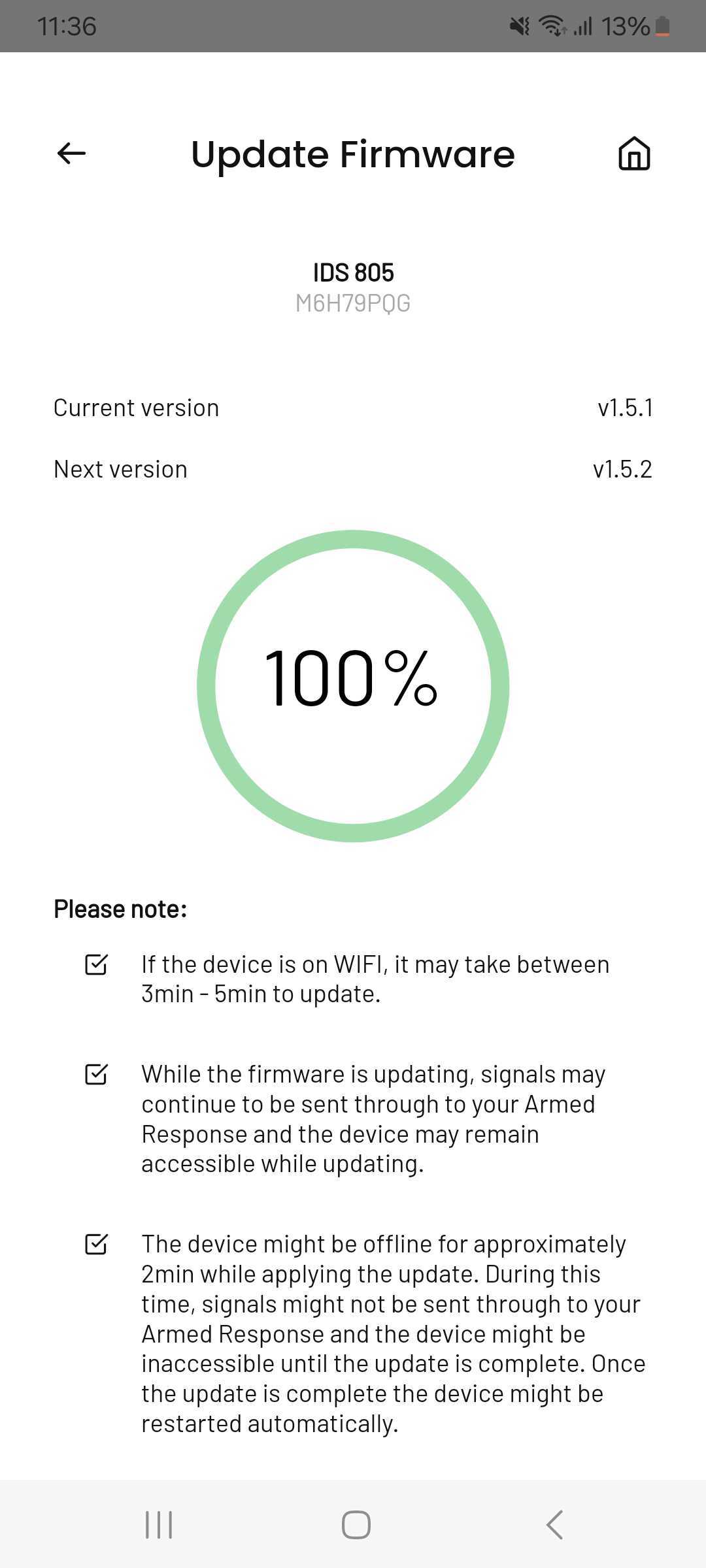

Step 6: Initiate the Firmware update and allow the device to update
