How to setup an I/O Port as an input in the Olarm APP
Configuring I/O Ports in the Olarm APP

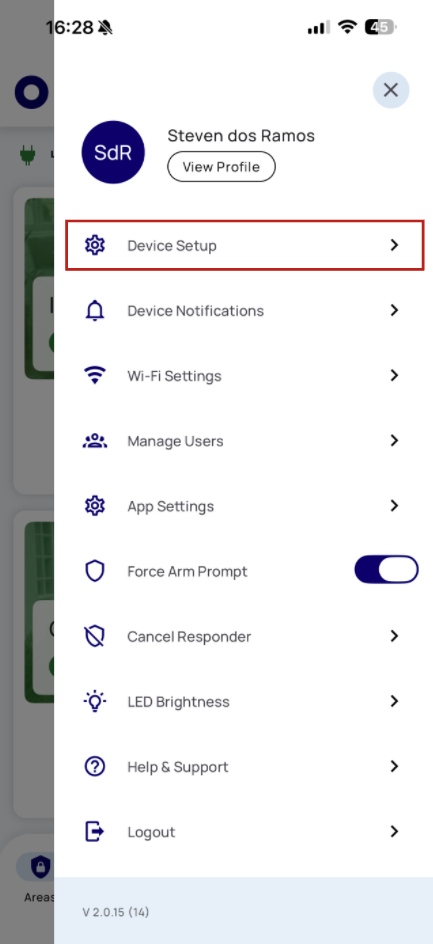

Step 1: Navigate to the Olarm MAX you wish to monitor & go into the Device Setup

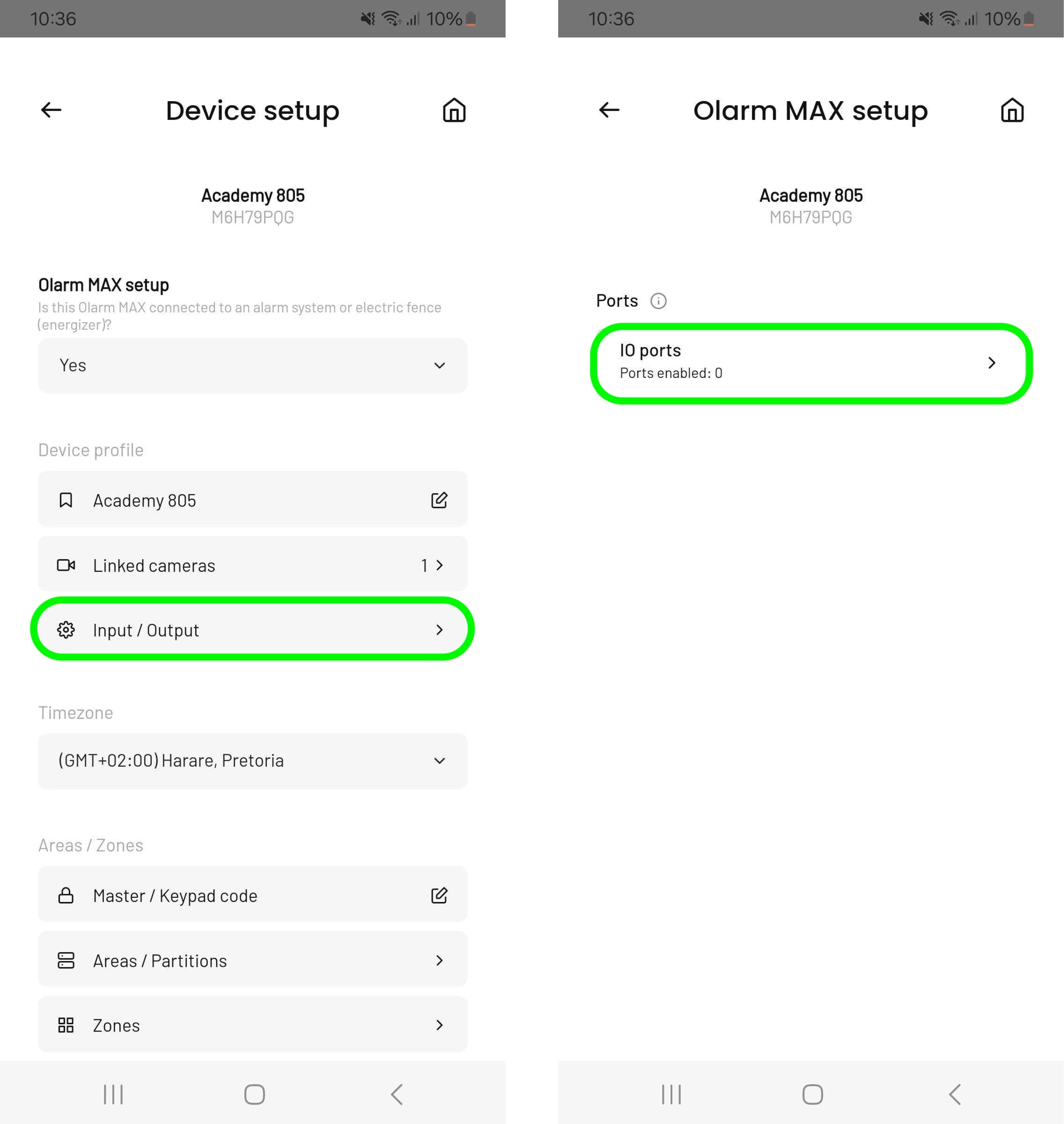

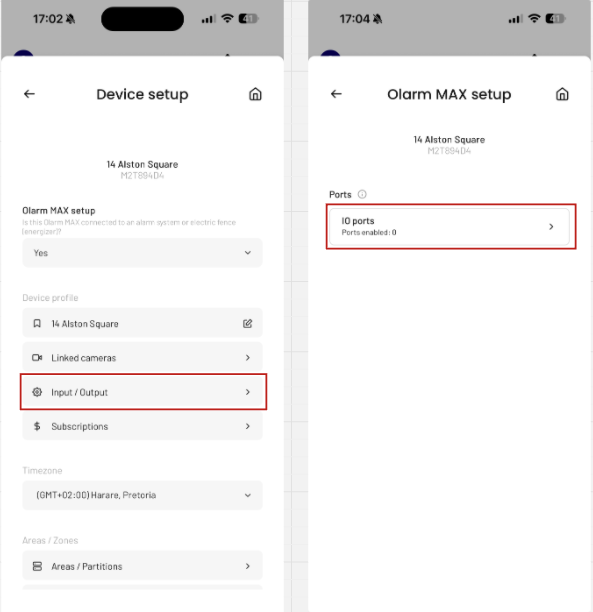

Step 2: Click on the Input / Output and tap on the I/O Ports

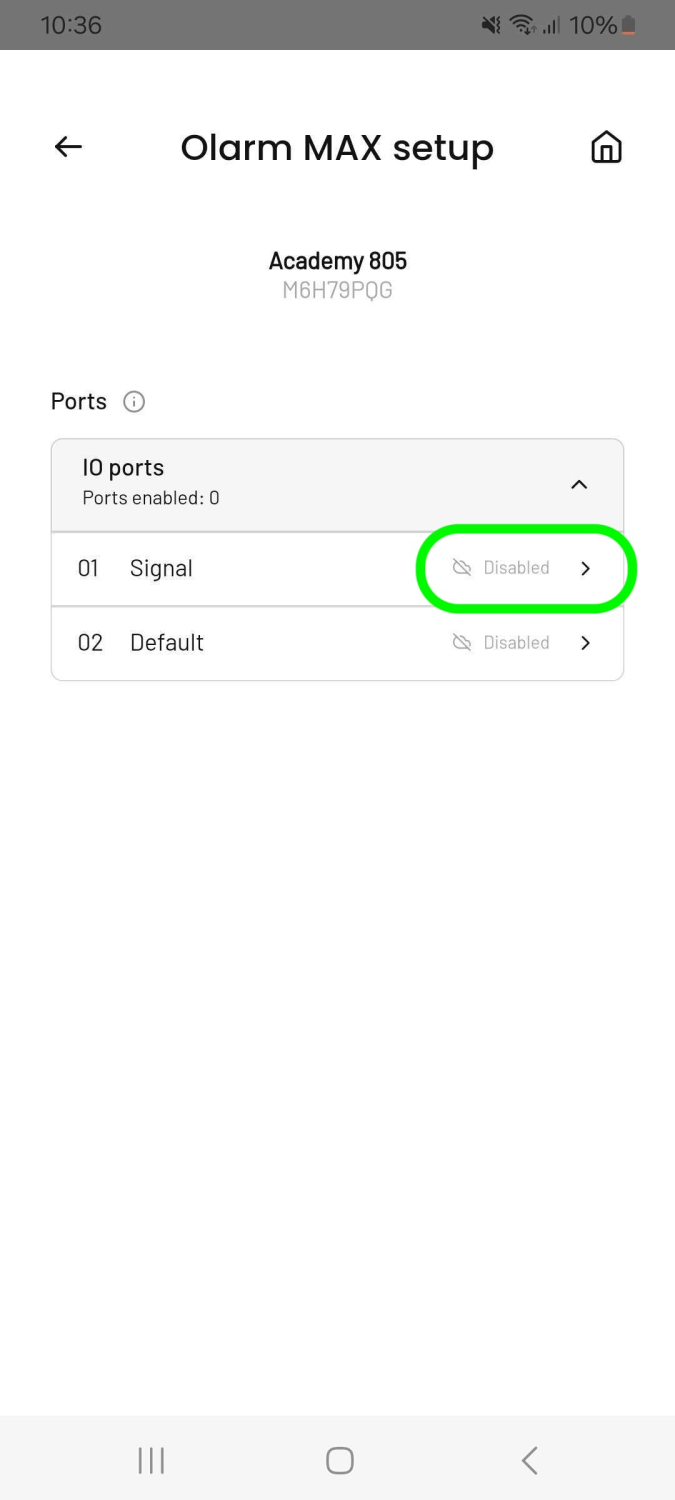

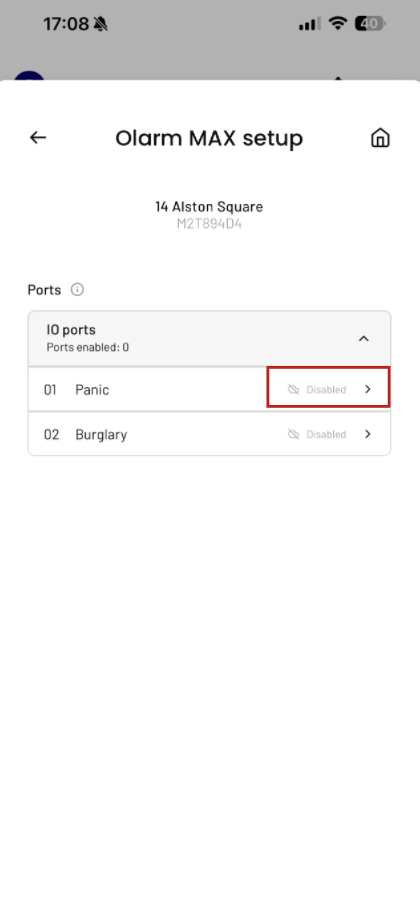

Step 3: Navigate to the I/O Port you want to enable and monitor

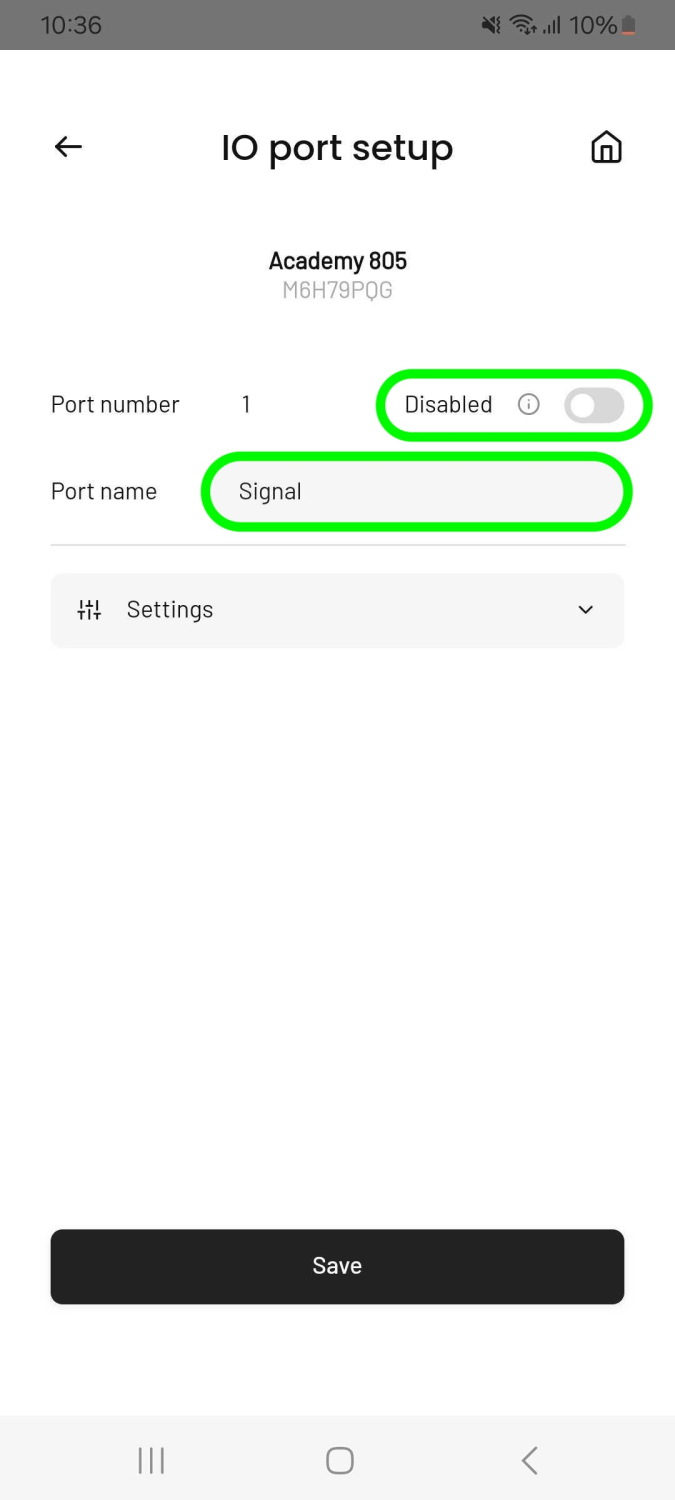

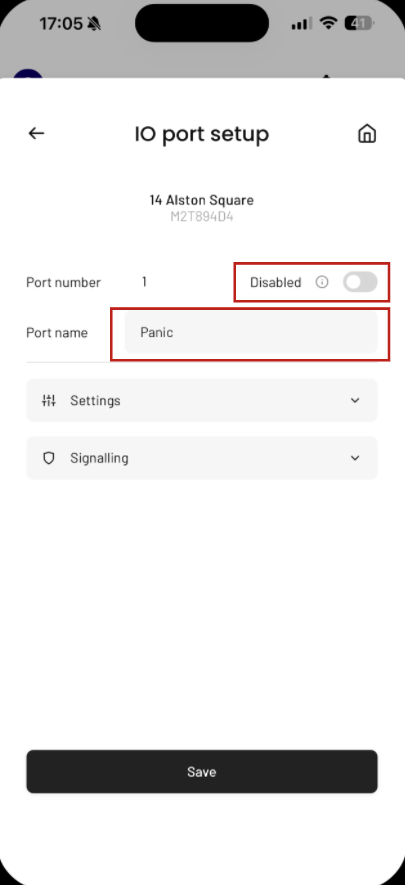

Step 4: Enable the I/O port and give it a name

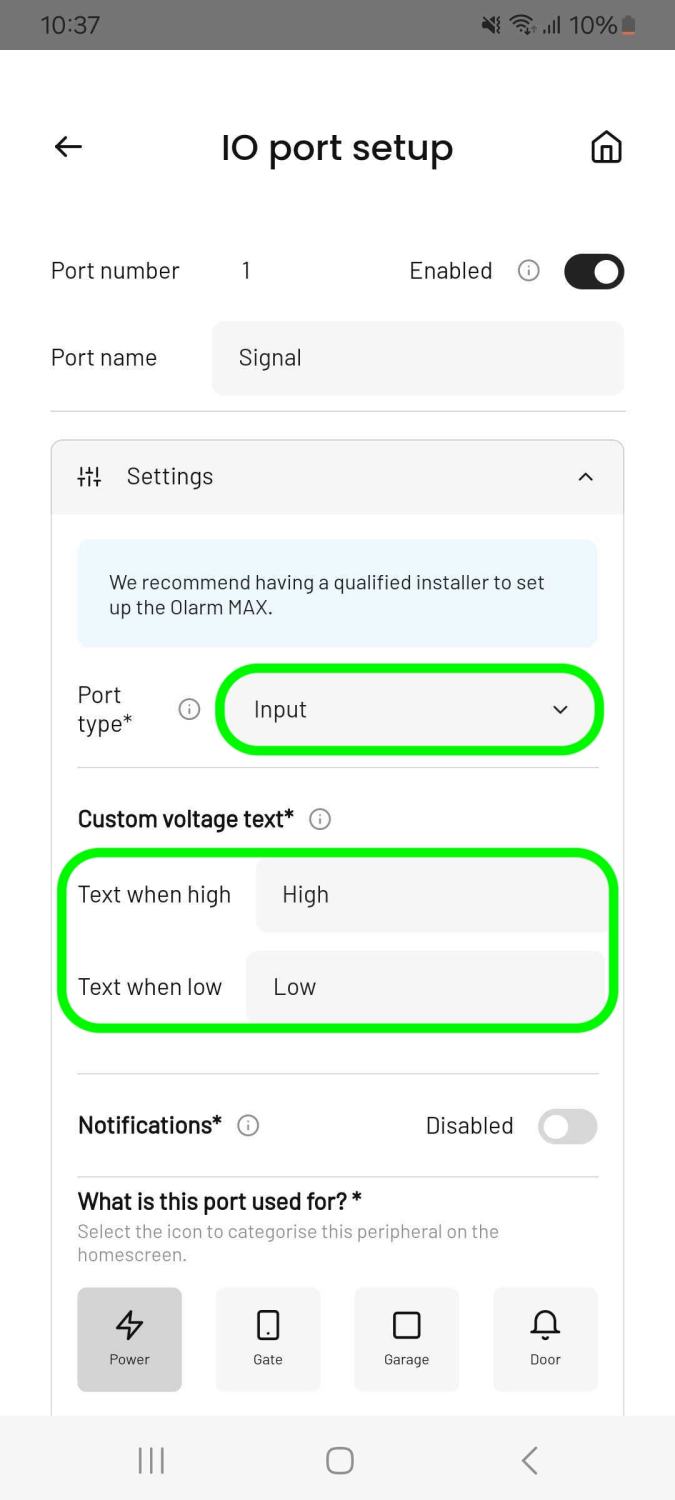

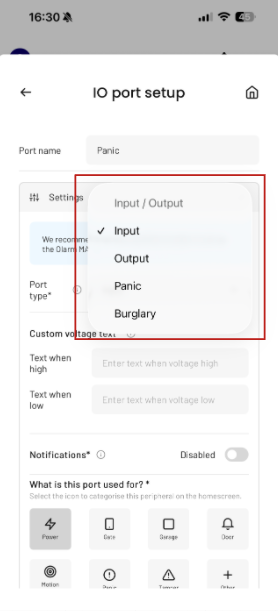

Step 5: Set the Port type
You are able to select an "Input" or "Output". You also have the option of using "Panic" and "Burglary" which will automatically set the input with defaults automatically set to Normally Open and a Positive Trip. If your device is professionally monitored, signals will automatically be configured appropriately to route for monitoring purposes.

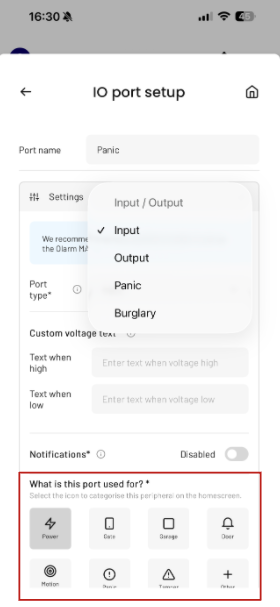

Step 6: Choose what the I/O Port is used for and save
You can also enable Olarm APP notifications for when the I/O Port detects high or low voltage, to suit your installation.

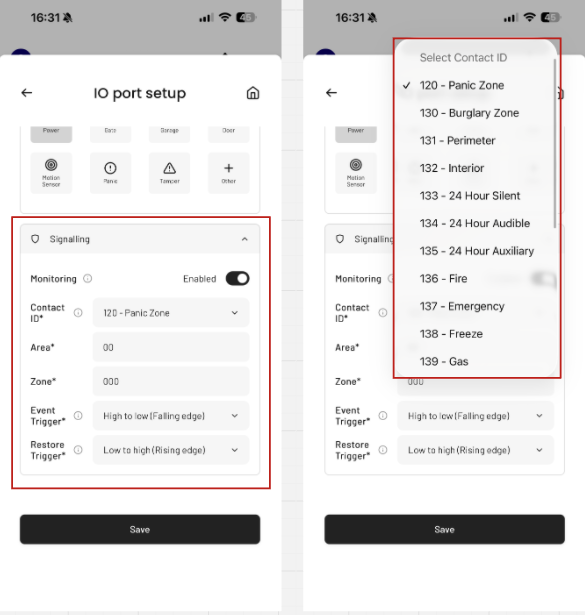

Step 7: Optional: Set signaling based on your requirement (for Installations for Professional Monitoring)
Advanced Setting: You are able to set respective signaling based on your input so that this can be professionally monitored. Where a "Panic" or "Burglary" input is set, the signal will automatically be set but can also be changed to suit your requirement. Once saved, this can later be verified in Command Center.
