Connecting to a Texecom alarm system using Olarm Remote Connect

Connecting to a Texecom alarm system using Olarm Remote Connect

Olarm Remote Connect is a tool that allows you to use your Upload & Download (UDL) software remotely via the Olarm MAX or Olarm PRO.


For a full list of alarm systems that are supported, please check out the link below

  1. Open Olarm Remote Connect, you will get the following screen

  1. Generate a remote programming code in Olarm Command Centre and copy the code

  1. Paste the code in Olarm Remote Connect, and then click on Connect


  1. Open Wintex
  2. Click on Setup (First-time Setup)

  1. Click on PC-Com and Select COM60 in the dropdown menu and click OK

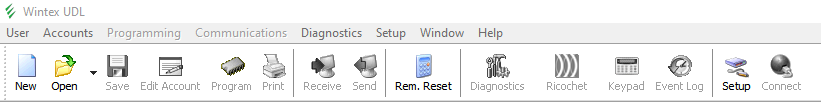

  1. Click on New

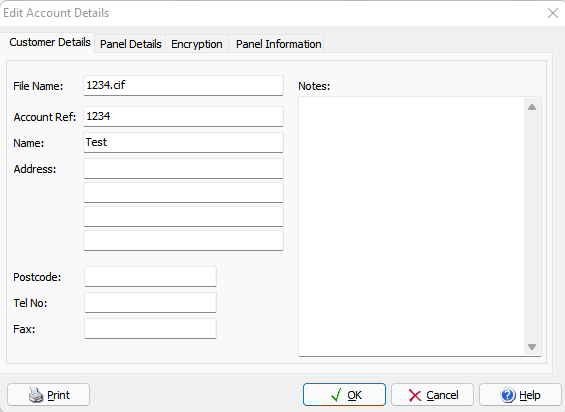

  1. Under Customer Details
  2. Fill in the Mandatory Field
    1. File Name:
    2. Account Ref:
    3. Name:

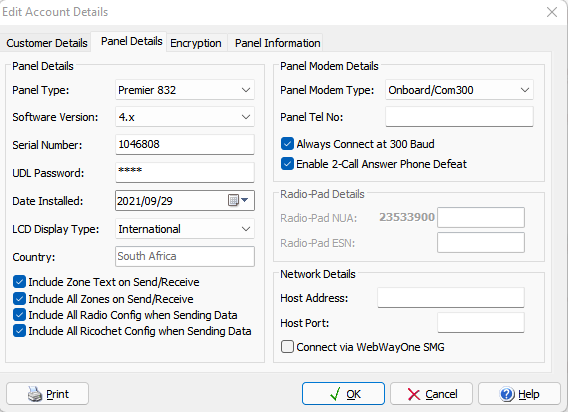

  1. Tap on Panel Details
  2. Make sure you have the Panel Firmware
  3. Fill in the Mandatory Field
    1. Panel Type:
    2. Software Version:
    3. UDS Password: (Should be 1234)
  4. Click OK
  1. Click Connect
  2. Select: COM60
  1. Once you have finished Programming click Disconnect
Please note:
Olarm Remote Connect is for use by Accredited Olarm Partners only

If you have any problems, please feel free to contact Olarm Support
Phone: +27 21 009 0911
WhatsApp: +27 60 039 0911
E & OE. Terms & conditions may apply.
