Connecting to a IDS alarm system using Olarm Remote Connect

Connecting to a IDS alarm system using Olarm Remote Connect

Olarm Remote Connect is a tool that allows you to use your Upload & Download (UDL) software remotely via the Olarm MAX or Olarm PRO.


For a full list of alarm systems that are supported, please check out the link below

Note: You will also need to set up serial redirect software, please click on the how to guide below.
  1. Open Olarm Remote Connect, you will get the following screen

    1. To connect to the Olarm, head over to your command Center and click Generate

    1. This code and then be copied and pasted into Olarm Remote Connect, then click on Connect


    1. Open IDS Swift 2
    2. Click New to set up a new Client Account or click Open for an Existing Client Account

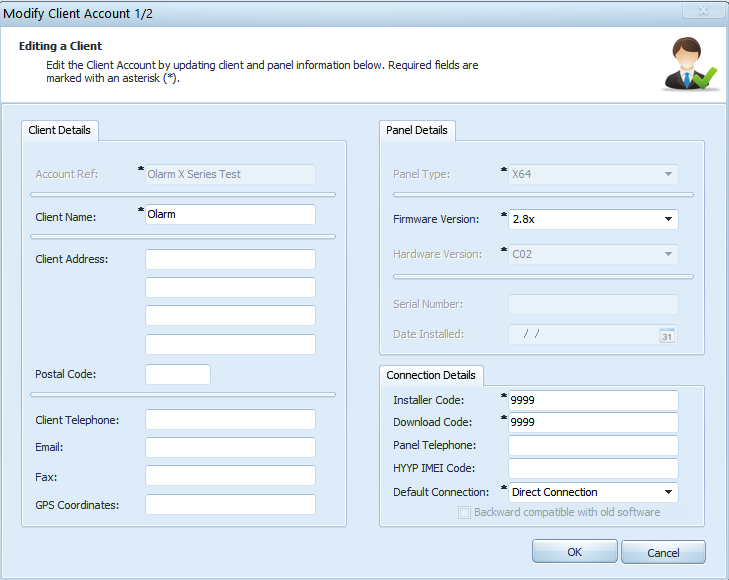

    1. Make sure you have the Panel Firmware and Installer code and fill in all the Mandatory Fields
      1. Account Ref:
      2. Client Name:
      3. Panel Type
      4. Firmware Version
      5. Hardware Version
      6. Installer Code
      7. Download Code
      8. Default Connection

    1. Click OK

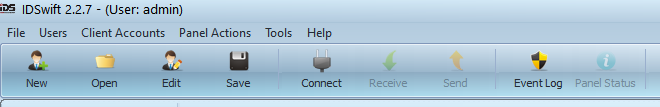

    2. Click Connect

    1. Select COM64 and click Connect again

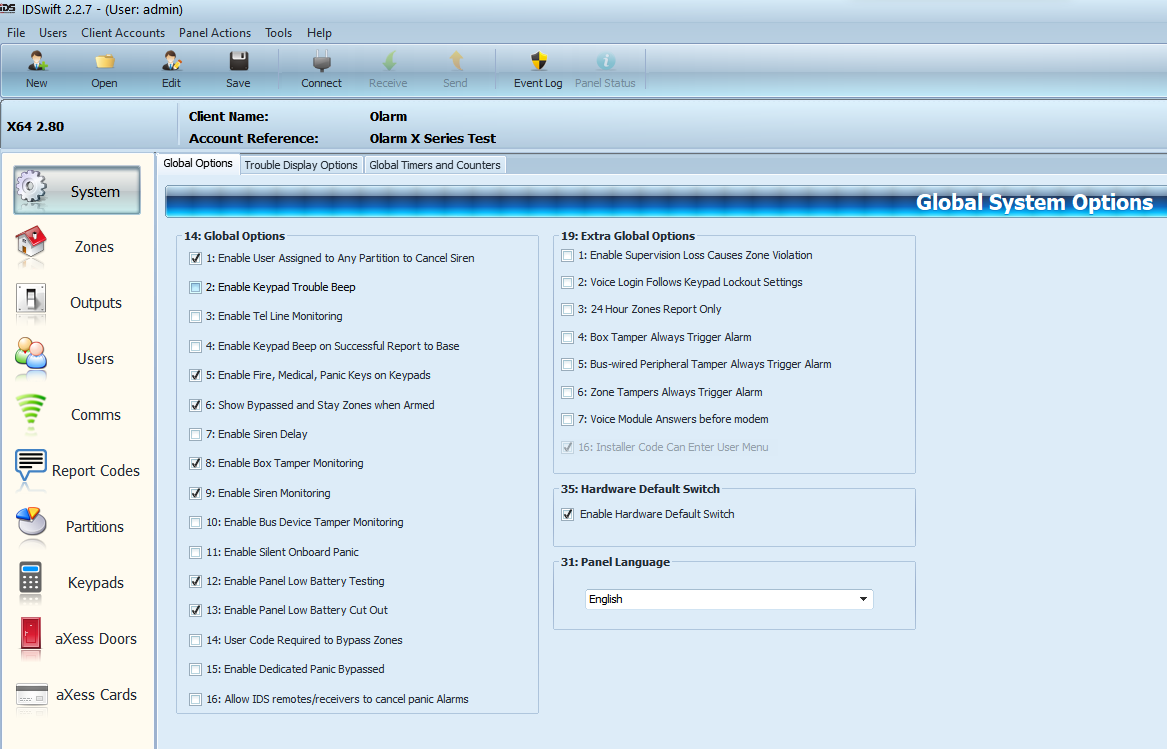

    1. Once you have finished Programming click Disconnect
    Please note:
    Olarm Remote Connect is for use by Accredited Olarm Partners only

    If you have any problems, please feel free to contact Olarm Support
    Phone: +27 21 009 0911
    WhatsApp: +27 60 039 0911
    E & OE. Terms & conditions may apply.
